Ispravljač ACE18A-12

by Rock Corner

Ispravljač ACE18A-12 je univerzalno čoper napajanje(nema trafo) za dosta vrsta uredjaja gde je potreban "ispeglan" napon i struja. Mi smo ga testirali na većini AKG, SHURE, SENNHEISER uredjaja i radi besprekorno.



GENERAL SPECIFICATIONS:

APPLICATIONS: GENERAL, VARIES
COOLING FAN (S): N/A
MAXIMUM OUTPUT POWER: 12V @ 1.5A MAXIMUM
CAPACITY: 1.5A
VOLTAGE: 12V

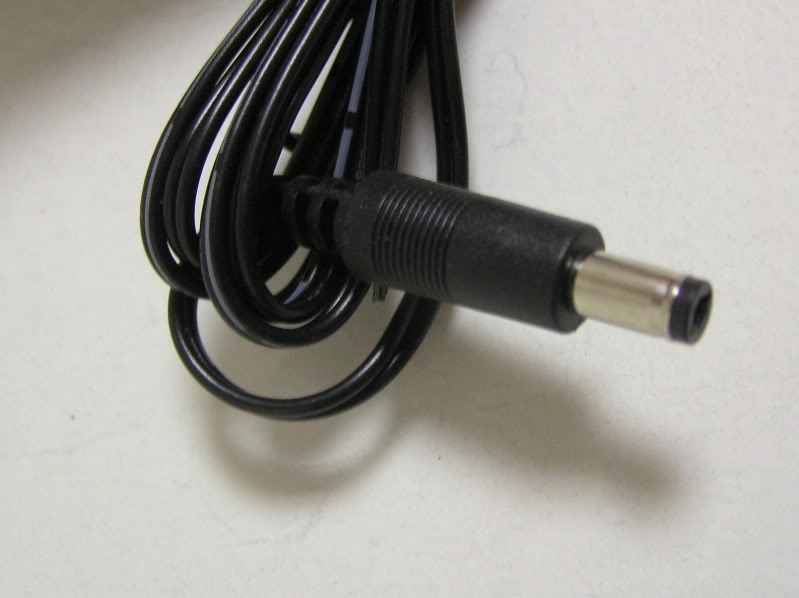

OUTPUT CONNECTORS: ROUND STANDARD PLUG (2.1mm X 5.5mm)  CONNECTOR TIP
CONNECTOR SIZE: N/A
OPERATING EFFICIENCY: 88% +
OPERATING TEMPERATURE: 0 ~ 40 °C +
OPERATING HUMILITY: 5 ~ 95% NON-CONDENSING
STORAGE TEMPERATURE: -20 ~ 80 °C +
RIPPLE / NOISE: 350 mV
SAFETY APPROVAL: CB, UL, cUL, CE, NEMKO, PSE, DFT, EMC, BSMI, C-TICK
MBTF: 100,000 HOURS @ TYPICAL
OTHER TESTS: 100% HI-POT, 100% BURN-IN @ FULL LOAD
UNIT SIZE: 102mm (W) X 43mm (D) X 30mm (H)
UNIT WEIGHT:  8 Oz (S)

INPUT SPECIFICATIONS:

Input Voltage: 90V AC to 264V AC, 47 ~ 63Hz
Power Factor Correction (PFC): AUTO FULL RANGE
Input Current: 2.4A rms MAX. @ 100V
  2.4A rms MAX. @ 240V
Input Protection: Patented Input Fuse Protection

OUTPUT SPECIFICATIONS:

NUMBER OF OUTPUTS: 1

Output Voltage: +12V DC


Output Current: 1.5A @ +12V DC MAXIMUM

Output Protection: Complete OVP, OCP, SCP Protection
OVP: OVER VOLTAGE OUTPUT PROTECTION
OCP: OVER CURRENT OUTPUT PROTECTION
SCP: SHORT CIRCUIT OUTPUT PROTECTION
Proizvod možete kupiti i u našoj radnji.
2.360,00 din.

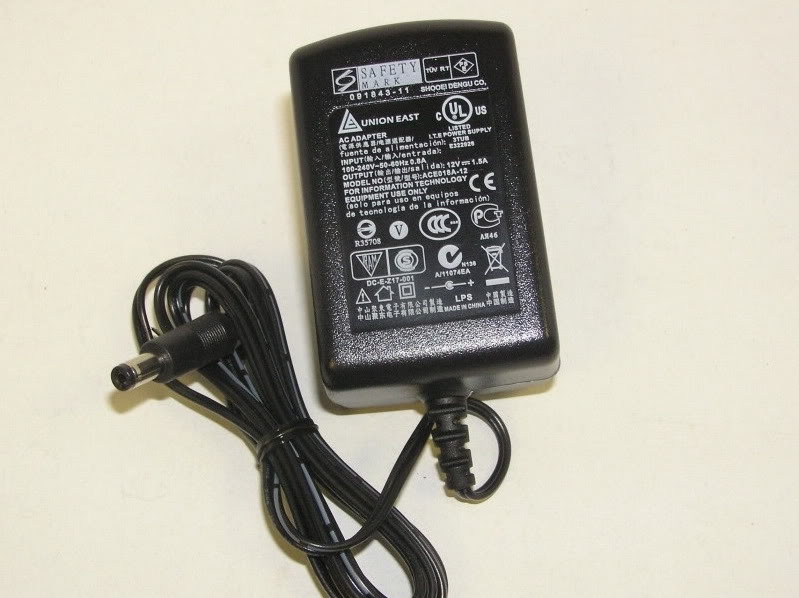

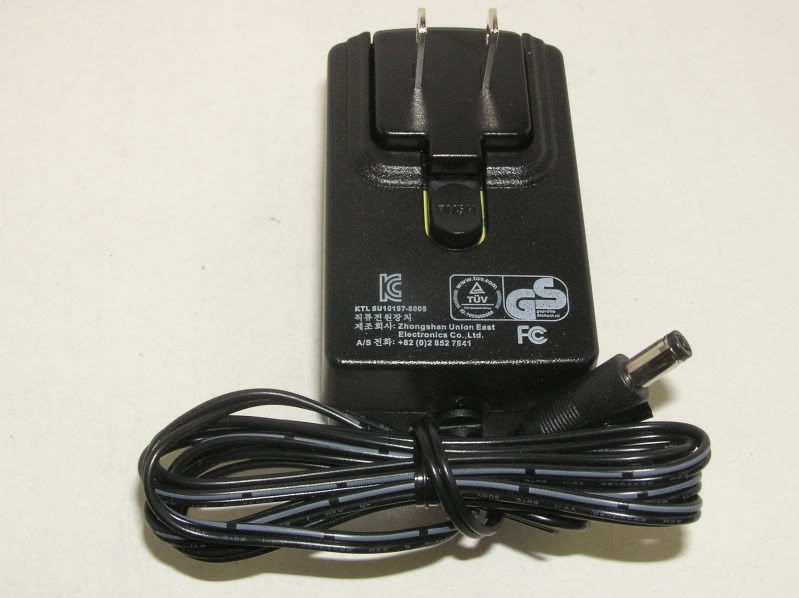

Još malo fotografija...
