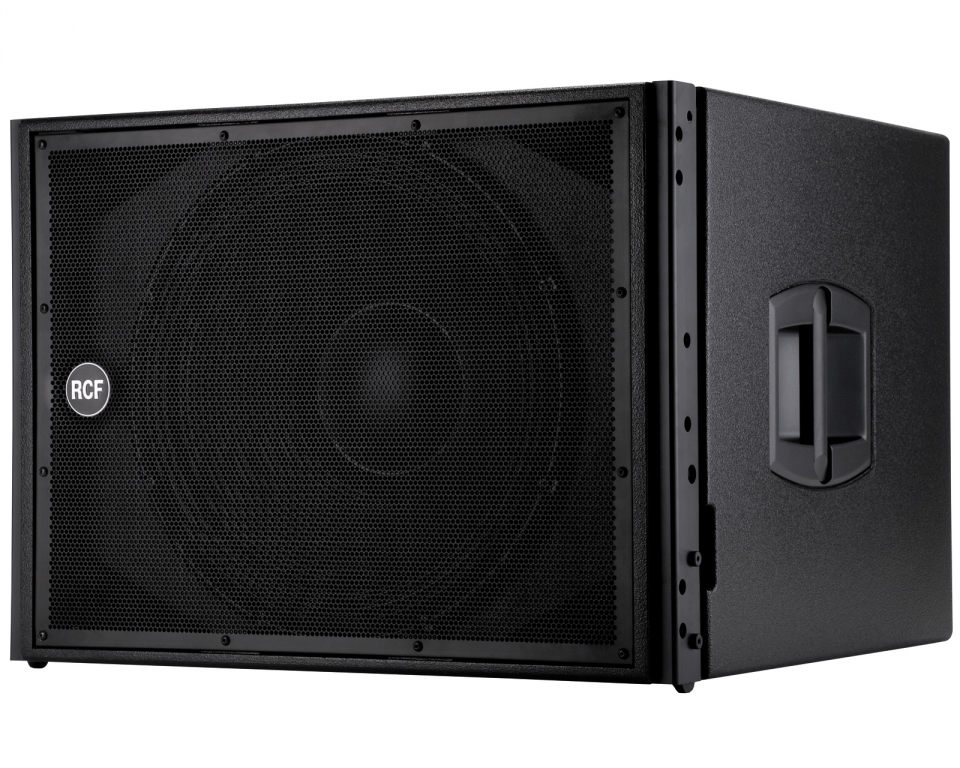

RCF HDL 18AS

by Rcf

Frequency Response -3 dB: 30 Hz ÷ 140 Hz

Max SPL: 135 dB

Woofer: 18", 4.0" v.c.

INPUT/OUTPUT SECTION

Input signal: bal/unbal

Input connectors: XLR

Output connectors: XLR

Input sensitivity: -2 dBu / +4 dBu

PROCESSOR SECTION

Protections: Thermal, RMS

Limiter: Soft limiter

Controls: Volume, EQ shape, Xover

AMPLIFIER SPECIFICATIONS

Total power: 2000 W PEAK

Low frequencies: 2000 W PEAK

Total power: 1000 W RMS

Low frequencies: 1000 W RMS

Cooling: Convection/forced

Connections: Powercon in/out

CABINET

Cabinet Material: Baltic Birch

Hardware: Rigging flyware, M20 insert

Handles: 2 side

Colour: Black

PHYSICAL SPECIFICATIONS

Height: 511.5 / 20.1 mm/inch

Width: 700 / 27.5 mm/inch

Depth: 620 / 24.4 mm/inch

Net Weight:48.4 / 106.7 kg/lbs

390.592,00 din.
