RCF HDL 10A

Zvučne kutije

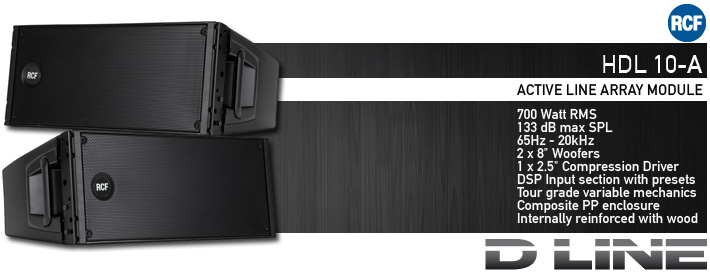

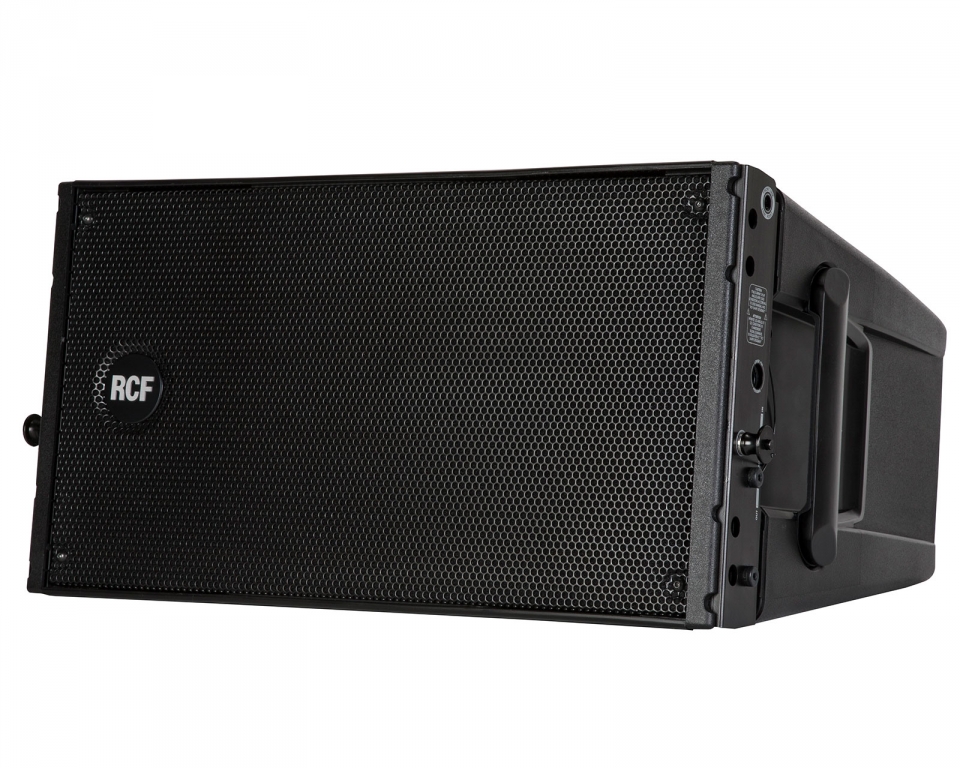

RCF HDL 10A

by Rcf

Ovaj moćni zvučnik je snage 700w sa osetljivošću SPL na 133 dB, aktivan, BI amp, sa odličnim karakteristikama i namenjen je za Line Array sisteme iz serije RCF HDL koji se koriste kao binska ili koncertna ozvučenja za široke namene. Moze se upariti i sklopiti sistem po želji kao i snaga po želji i vrste namene. Sistem je beskonačno proširiv.







Frequency Response -3 dB: 65 Hz ÷ 20000 Hz

Max SPL: 133 dB

Horizontal coverage angle: 100°

Vertical coverage angle: 15°

Compression Driver: 2", 2.5" v.c.

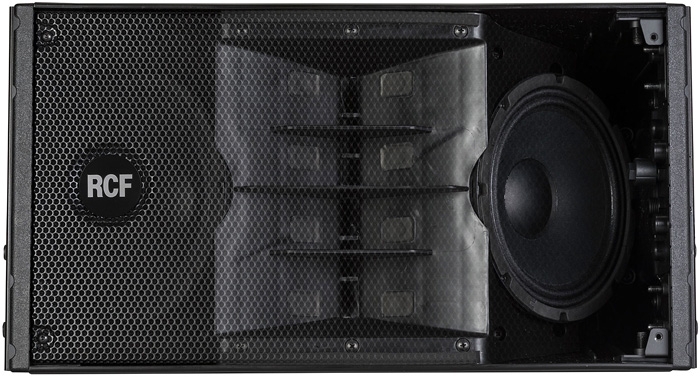

Woofer: 2 x 8", 2.0" v.c.

INPUT/OUTPUT SECTION

Input signal: bal/unbal

Input connectors: XLR

Output connectors: XLR

Input sensitivity: -2 dBu / +4 dBu

PROCESSOR SECTION

Crossover frequencies: 800 Hz

Protections: Thermal, RMS

Limiter: Soft limiter

Controls: Cluster, HF, High curving, Indoor

AMPLIFIER SPECIFICATIONS

Total power: 1400 W PEAK

   High frequencies: 400 W PEAK

   Low frequencies: 1000 W PEAK

Total power: 700 W RMS

   High frequencies: 200 W RMS

   Low frequencies: 500 W RMS

Cooling: Convection

Connections: Powercon in/out

CABINET

Cabinet Material: Composite PP, wooden reinforced

Hardware: Rigging flyware

Handles: 2 side

Colour: Black

PHYSICAL SPECIFICATIONS

Height: 294 / 11.5 mm/inch

Width: 569 / 22.40 mm/inch

Depth: 434 / 17.09 mm/inch



Net Weight: 25.4 / 55.99 kg/lbs

199.302,00din.
239.693,00 din.

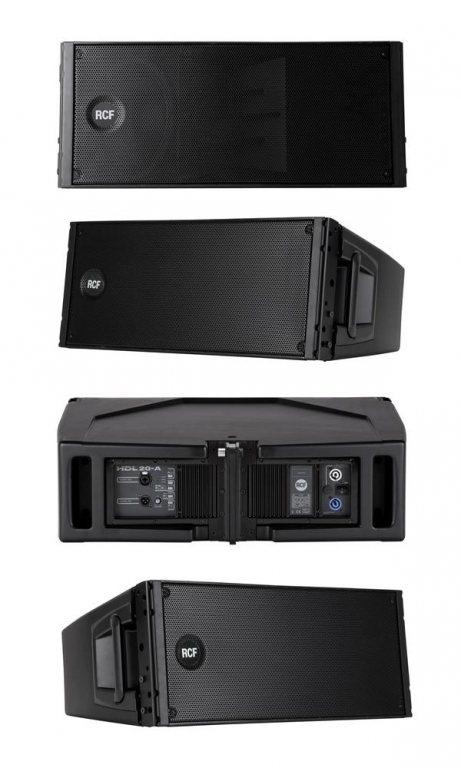

Još malo fotografija...
