Acoustical Specifications
- Frequency Response -10 dB: 55 Hz ÷ 20 kHz
- Max SPL @ 1m: 133 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
- System Sensitivity: 99 dB
- Nominal Impedance: 8 Ω
- Power Handling: 700 W
- Peak Power Handling: 2800 W
- Recommended Amplifier: 1000
- Protections: HF Driver Dynamic Mosfet
- Crossover frequencies: 1400 Hz
Transducers
- Compression Driver: 1.5" throat 3" coil diaphragm assembly
- Nominal Impedance: 8 Ω
- Input Power Rating: 110 W AES
- Sensitivity: 109 dB
- Woofer: 15" woofer with 3,4" coil
- Nominal Impedance: 8 Ω
- Input Power Rating: 650 W AES
- Sensitivity: 98 dB

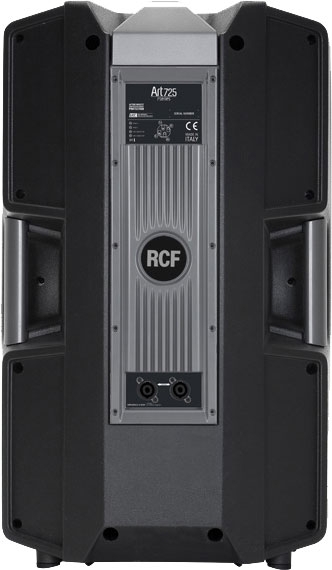

Input Section
- Input connector: Speakon NL4
- Output connector: Speakon NL4
Cabinet
- Hardware: 2 x M10, pole mount
- Handles: 2 on side
- Pole Mount/Cap: yes
- Grille: Steel
- Colour: Black
Physical Specifications
- Height: 708/27.87 mm/inch
- Width: 437/17.2 mm/inch
- Depth: 389/15.31 mm/inch
- Net Weight: 19/41.88 kg/lbs
