- 750 Watt Digipro digital amplifier
- 130 dB max spl
- 90 x 60, Wide dispersion constant directivity horn
- 12" woofer, high power neodymium 3" voice coil
- 2" HF driver, titanium dome, neodymium 2.5" voice coil
- PFC power factor correction
- Frequency Response -3 dB: 45 Hz ÷ 20 kHz
- Max SPL: 130 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
- Compression Driver: 2" neo, 2.5" v.c.
- Woofer: 12" neo, 3" v.c.

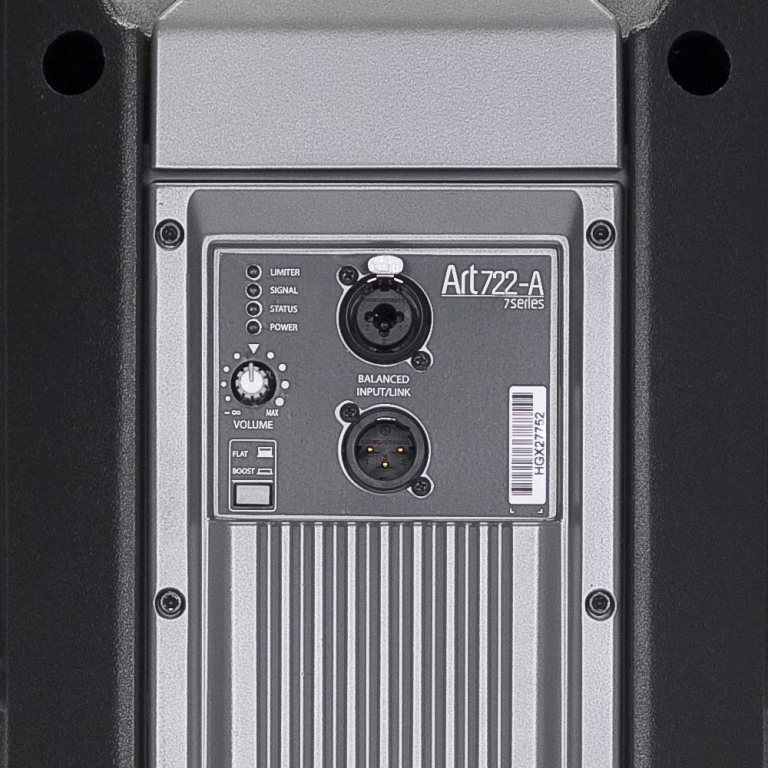

Input/Output Section
- Input signal: Bal/unbal
- Input connectors: Combo xlr-jack
- Output connectors: xlr
- Input sensitivity: -2 dBu / +4 dBu
Processor Section
- Crossover frequencies: 1200 Hz
- Protections: Thermal, rms
- Limiter: Soft limiter
- Controls: Volume, EQ shape
Amplifier Specifications
- Total power: 750 W
- High frequencies: 250 W
- Low frequencies: 500 W
- Cooling: Convection / forced
- Connections: VDE connector in
Cabinet
- Cabinet Material: Composite PP
- Hardware: 2xM10 flying p.
- Handles: 2 side, 1 top
- Pole Mount/Cap: Yes
- Colour: Black
Physical Specifications
- Height: 637 / 25.07 mm/inch
- Width: 384 / 15.11 mm/inch
- Depth: 363 / 14.29 mm/inch
- Net Weight: 18 / 39.68 kg/lbs
