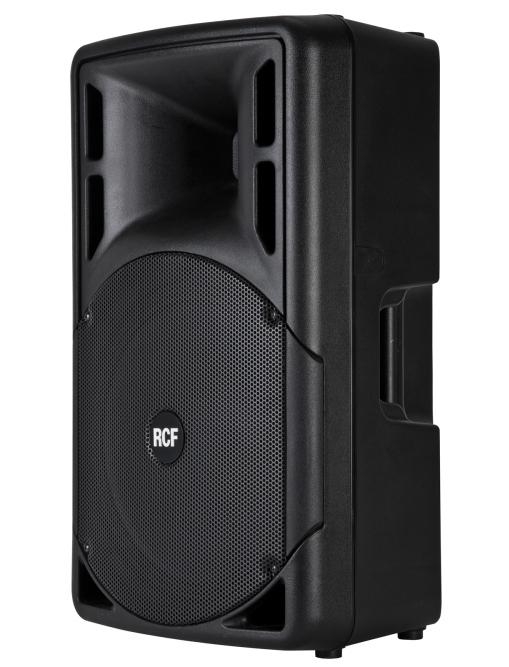

RCF ART 315A MK3

Zvučne kutije

RCF ART 315A MK3

by Rcf

ART 315-A is the perfect speaker for live sound situations where extra vocal punch and extremely accurate high frequency response is needed.
The 15” woofer delivers a very tight punchy bass and an accurate reproduction of the midrange .
The high frequencies are precise and natural thanks to the compression driver with mylar dome in front of a low
compression, optimised geometry, radial phase plug.
Thanks to the versatility in both monitoring and playback, it represents the ideal multipurpose solution.

Karakteristike:

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB: 45 Hz ÷ 20000 Hz

Max SPL: 129 dB

Horizontal coverage angle: 90°

Vertical coverage angle: 60°

Compression Driver: 1", 1.5" v.c.

Woofer: 15", 2.5" v.c.

INPUT/OUTPUT SECTION

Input signal: bal / unbal

Input connectors: xlr

Output connectors: xlr

Input sensitivity: 0 dBu

Mic. Input Sensitivity: -40

PROCESSOR SECTION

Crossover frequencies: 1650 Hz

Protections: DC / short cir.

Limiter: Fast limiter

Controls: Volume, EQ settings

AMPLIFIER SPECIFICATIONS

Total power: 800 W PEAK

   High frequencies:200 W PEAK

   Low frequencies: 600 W PEAK

Total power: 400 W RMS

   High frequencies: 100 W RMS

   Low frequencies: 300 W RMS

Cooling: Convection

Connections: VDE conncector in

CABINET

Cabinet Material: Composite PP

Hardware: 4xM10 flying p.

Handles: 2 side, 1 top

Pole Mount/Cap: Yes

Colour: Black

PHYSICAL SPECIFICATIONS

Height: 680 / 26.67 mm/inch

Width: 405 / 15.94 mm/inch

Depth: 345 / 13.58 mm/inch



Net Weight: 19 / 41.8 kg/lbs

Proizvod možete kupiti i u našoj radnji.
81.350,00din.
65.111,00 din.
