RCF ART 310A MK3

Zvučne kutije

RCF ART 310A MK3

by Rcf





  • 350 Watt bi-amplification
  • 127 dB max spl
  • 90 x 70, Wide dispersion constant directivity horn
  • 10" woofer, high power neodymium 2,5" voice coil
  • 1" HF driver, titanium dome, neodymium 1.5" voice coil
Acoustical Specifications
  • Frequency Response -3 dB: 50 Hz ÷ 20 kHz
  • Max SPL: 127 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 70°
  • Compression Driver: 1" neo, 1.5" v.c.
  • Woofer: 10" neo, 2.5" v.c
Input/Output Section
  • Input signal: bil/sbil
  • Input connectors: xlr
  • Output connectors: xlr
  • Input sensitivity: 0 dBu
  • Mic. Input Sensitivity: -40
Processor Section
  • Crossover frequencies: 1800 Hz
  • Protections: DC / short cir.
  • Limiter: Fast limiter
  • Controls: Volume
Amplifier Specifications
  • Total power: 350 W
  • High frequencies: 50 W
  • Low frequencies: 300 W
  • Cooling: Convection
  • Connections: VDE connector in
Cabinet
  • Cabinet Material: Composite PP
  • Hardware: 2xM10 flying p.
  • Handles: 1 top
  • Pole Mount/Cap: Yes
  • Colour: Black
Physical Specifications
  • Height: 537 / 21.14 mm/inch
  • Width: 337 / 13.26 mm/inch
  • Depth: 315 / 12.40 mm/inch
  • Net Weight: 12.4 / 27.33 kg/lbs
61.850,00din.
52.097,00 din.

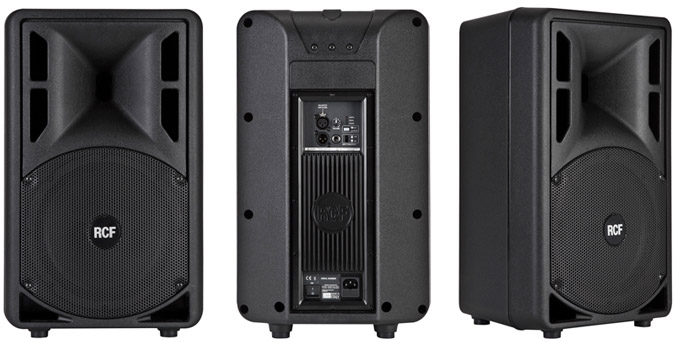

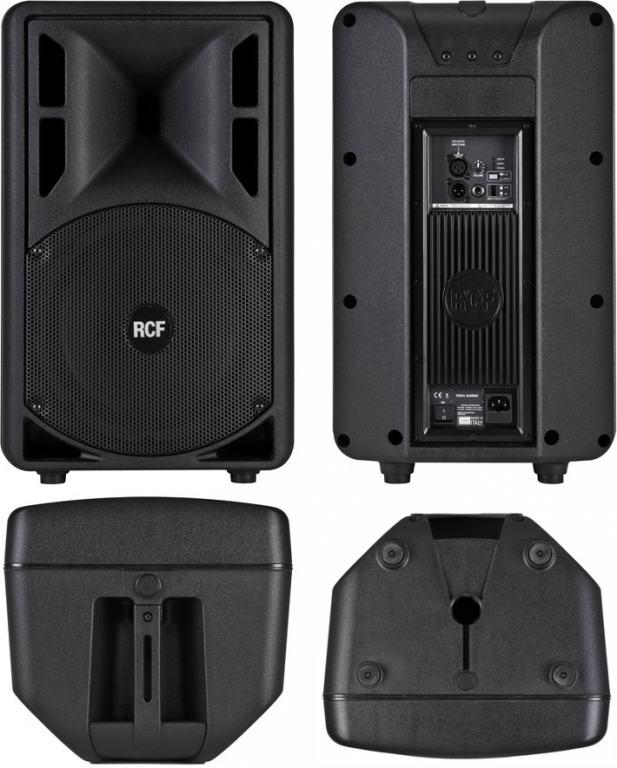

Još malo fotografija...
