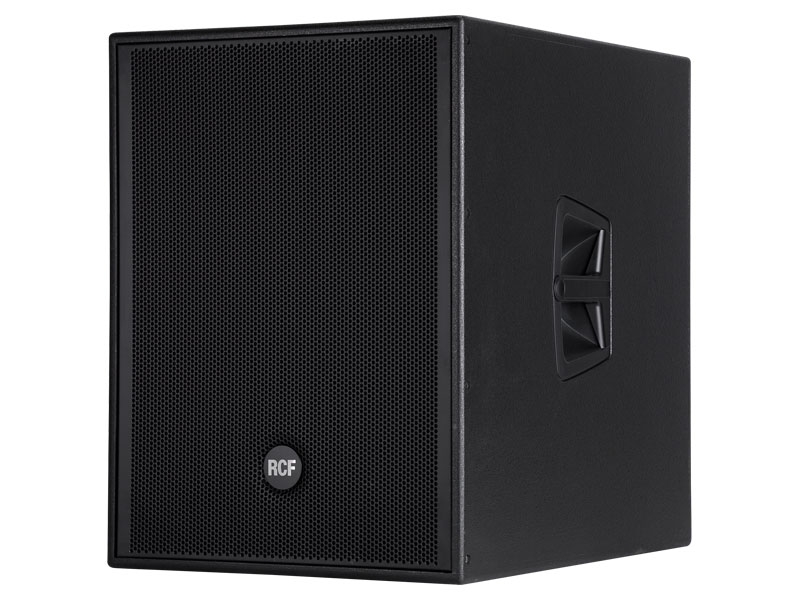

RCF 4PRO 8003AS

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB: 40 Hz ÷ Xover p. Hz

Max SPL: 134 dB

Woofer: 18" ferrite magnet, 4" voice coil

INPUT/OUTPUT SECTION

Input signal: bal / unbal

Input connectors: Stereo c. xlr-jack

Output connectors: Stereo xlr

Input sensitivity: - 2 dBu / +4 dBu

PROCESSOR SECTION

Crossover frequencies: 80 / 120 Hz

Protections: Thermal, rms

Limiter: Dinamic limiter

Controls: Volume, xover, phase

AMPLIFIER SPECIFICATIONS

Total power: 2000 W PEAK

   Low frequencies: 2000 W PEAK

Total power: 1000 W RMS

   Low frequencies: 1000 W RMS

Cooling: Convection/forced

Connections: Powercon in / out

CABINET

Cabinet Material: Baltic birch

Handles: 2 side

Pole Mount/Cap: Yes

Colour: Black

PHYSICAL SPECIFICATIONS

Height: 700 / 27.56 mm/inch

Width: 520 / 20.47 mm/inch

Depth: 700 / 27.56 mm/inch

Net Weight: 49 / 108.02 kg/lbs
