Pojačalo 100V Omnitronic MPVZ-180.6

Pojačala 100 voltna

Pojačalo 100V Omnitronic MPVZ-180.6

by Omnitronic

100 Voltno pojačalo 180W 6 Zona



  • Comfortable control of PA speakers via 6-zone technology
  • 6 PA zone outputs, independently switchable on the front panel
  • SVAKA ZONA IMA SVOJ potenciometar
  • Master PA output (70 V and 100 V)
  • Output for low-impedance speakers (4-16 ohms)
  • 2 rear microphone inputs (6.3 mm jack, unbal.)
  • 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
  • All microphone inputs with separate level controls
  • Svaki mikrofon ima svoju kontrolu, idealno za restorane i sportske dvorane
  • 3 line inputs (stereo RCA) with separate level controls
  • 1 line output (stereo RCA)
  • Chime, switchable
  • Treble and bass control for the output signal
  • 7-fold LED level display
  • Master control for the output signal
  • Fan-cooled
  • Protection circuits with LED indication: over current, short circuit, turn-on delay
  • Rack installation, brackets detachable
Power supply: 230 V AC, 50 Hz ~
Power consumption: 360 W
Output power: 180 W RMS
Output type: 70 V, 100 V or 4-16 ohms
Output current: 2.5 A (70 V), 1.8 A (100 V)
Mic inputs: 5 mV, 600 ohms
Line inputs: 300 mV, 10 kohms
Speaker connectors: Screw connectors, terminal block
Frequency range: 80 Hz - 16 kHz
Distortion: 0.5 % (1 kHz)
S/N ratio: 85 dB (line), 75 dB (mic)
Dimensions: 483 x 385 x 92 mm
Weight: 12 kg
42.480,00 din.

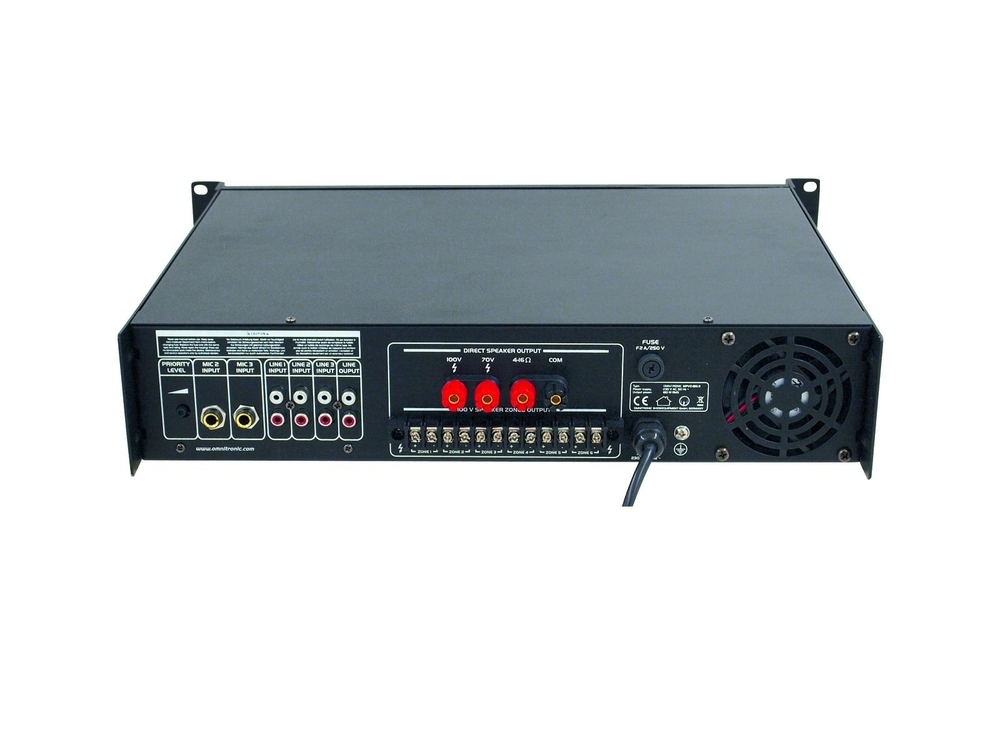

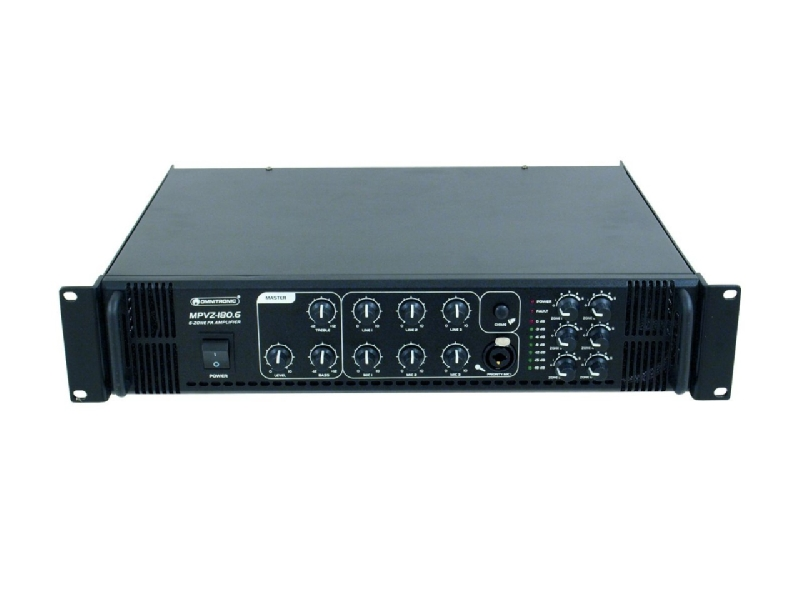

Još malo fotografija...
