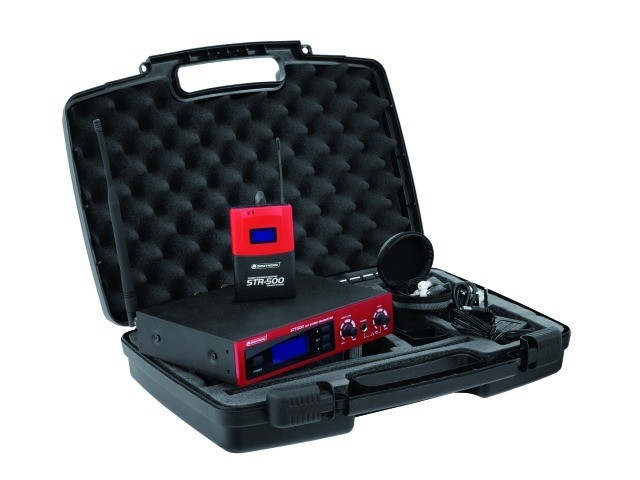

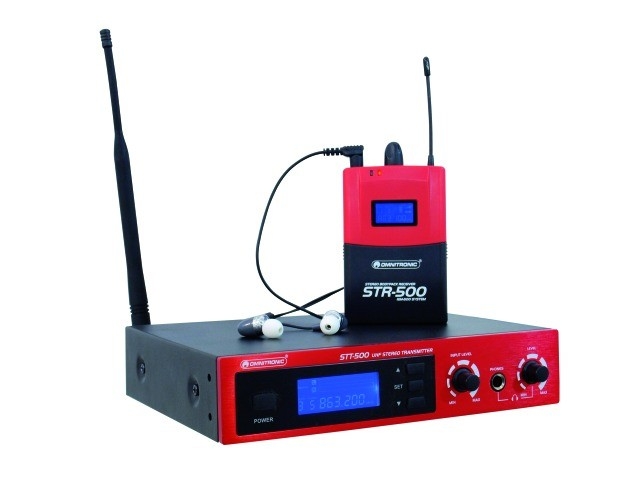

Omnitronic IEM-500 In-ear monitoring set

by Omnitronic

Carrier frequency:	UHF 863.000 - 865.000 MHz (16 channels)
Modulation:	FM
Frequency response:	60 - 16000 Hz ( 3 dB)
Frequency stability:	0.005 %
Tone signal:	32,768 kHz
S/N ratio:	>90 dB at 48 kHz deviation
Dynamic range:	>96 dB
T.H.D.:	<1 % at 1 kHz
Coverage:	50 m (with line-of-sight)

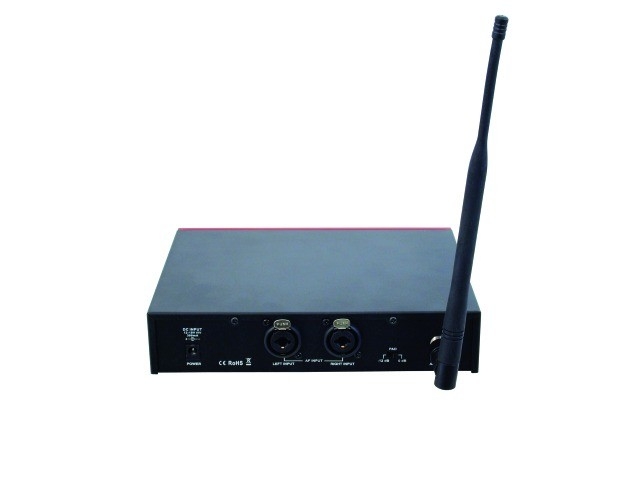

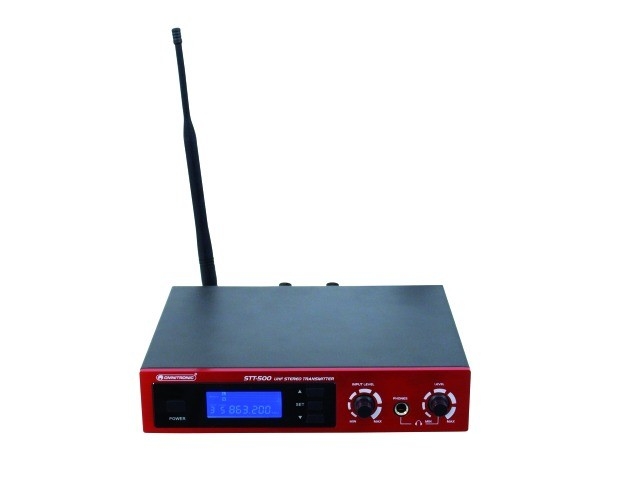

STT-500 Stationary Transmitter
Antenna:	TNC, detachable
RF power output:	10 mW max.
Maximum deviation:	48000 Hz
Signal inputs:	2 x balanced combo XLR/6.3 mm jack
Input impedance:	100 kohms
Input sensitivity:	+6 dBV
Gain adjustment range:	40 dB
Power supply:	230 V AC, 50 Hz via supplied power unit
Power consumption:	5 W
Dimensions (WxDxH):	212 x 160 x 44 mm
Weight:	1 kg

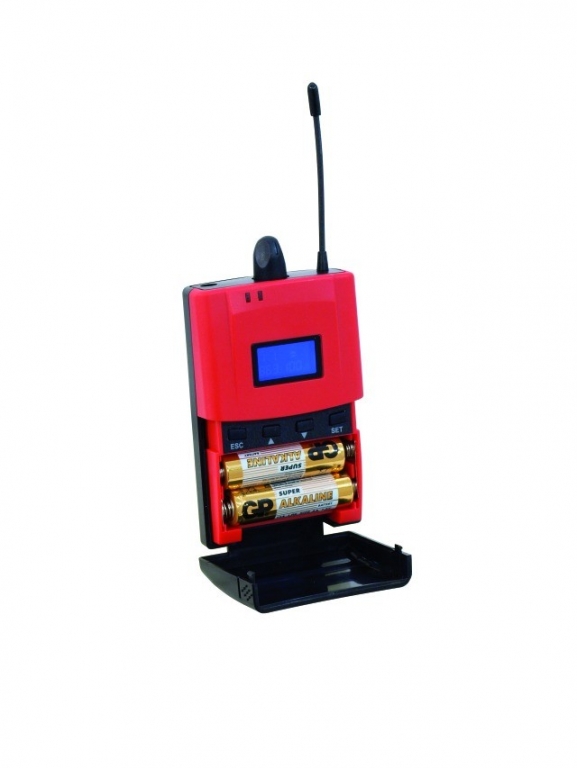

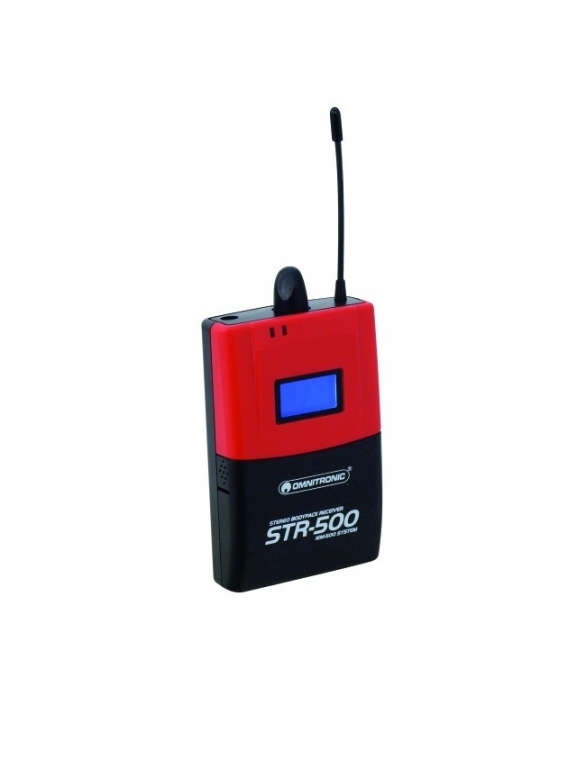

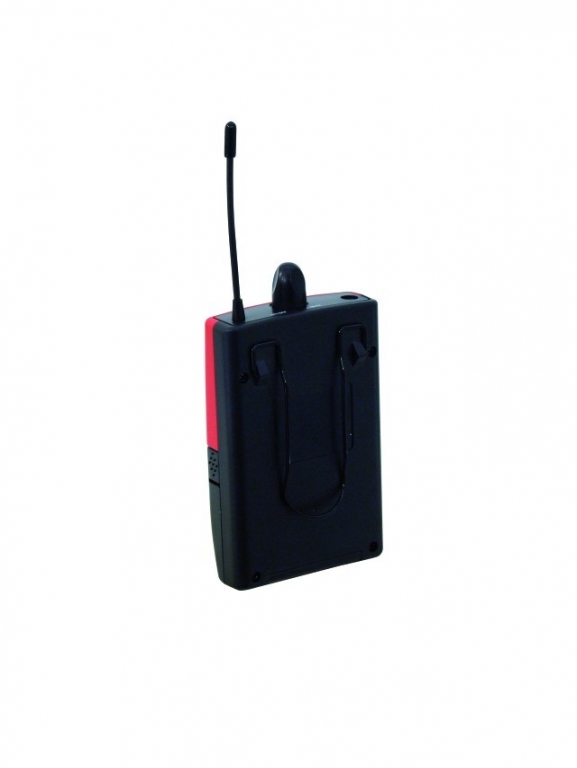

STR-500	Pocket Receiver
Antenna:	Built-in
System:	Non-diversity, one channel
Selectivity:	>55 dB
Dynamic range:	>94 dB
Earphones output:	3.5 mm stereo jack
Audio output level:	100 mW
Power supply:	2 x 1.5 V mignon batteries (type AA)
Current consumption:	Approx. 130 mA, 5 mA
Battery life:	Approx. 5 hours, depending on the volume
Dimensions (WxDxH):	98 x 23 x 64 mm
Weight:	100 g

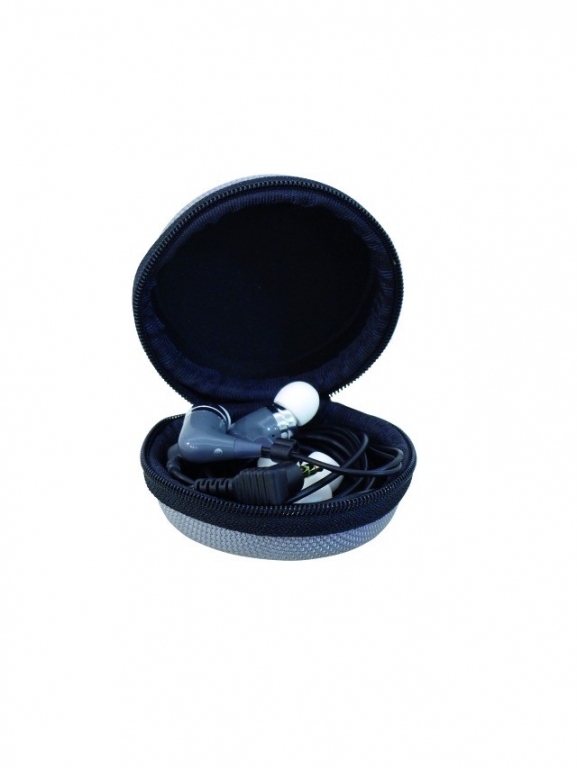

Earphones
Transducer type:	Dynamic
Frequency range:	20 - 20000 Hz
Impedance:	32 ohms, 15 %
Sensitivity:	94 dB, 3 dB
Cable length:	1.2 m
Connection:	3.5 mm stereo plug
Weight:	14 g

38.232,00din.

32.214,00 din.
