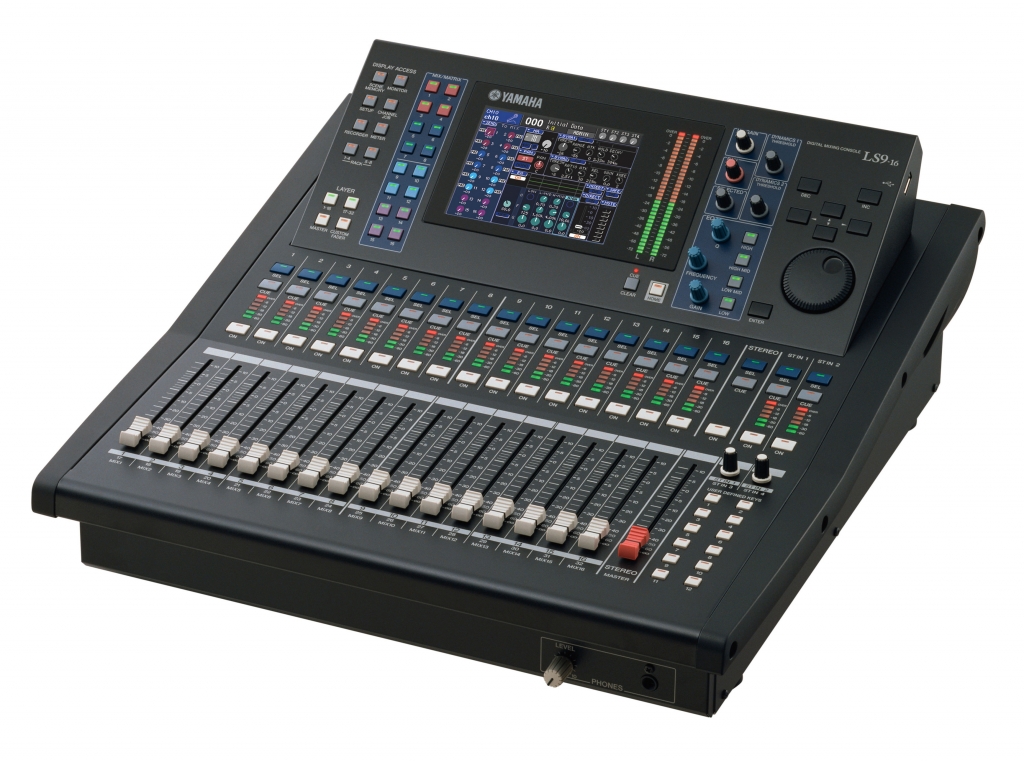

Mikseta Yamaha LS9-16

 Mikseta Yamaha LS9-16

• Mixing channels 32 Mono + 4 Stereo
• GROUP 16 MIX (Group/AUX) busses
• AUX 16 MIX (Group/AUX) busses
• MAIN Stereo, Mono MATRIX 8 Input channel functions HPF, Attenuator, 4-band PEQ, 2x Dynamics, Pan (LR or LCR with CSR)
• Output channel functions Attenuator,
• 4-band PEQ, Dynamics On-board processors 4x GEQ, 4x GEQ/SPX (GEQ: 31-band or 2x Flex15),
• 50x Output port delay
• Mic inputs 16 (Recallable)
• Phantom power +48V DC; ON/OFF per channel
• AD converter 24-bit; 128-time over sampling Line outputs
• 8 Omni output DA converter 24-bit; 128-time over sampling Digital I/O 2tr in/out,
• USB Memory Recorder/Player Expansion slots Mini-YGDAI (16-in/16-out); Possible to remote HA gain via slot Control and others Ethernet,
• MIDI, USB (Storage/Key),
• Word clock I/O 32bit, Accumulator: 58bit Internal 44.1kHz, 48kHz External 44.1 kHz (-10%) to 48 kHz (+6%) Less than 2.5 ms (@48kHz) Less than 0.05% (20Hz-20kHz) 0, +0.5, -1.5dB 20Hz-20kHz
• DA: 110dB;
• AD+DA: 108dB Equivalent input noise -128dBu
• Residual output noise -86dBu -80 dB
• Adjacent Input Channels,
• Input to Output AC100-240V 50/60Hz 95W
• W 480mm; 18-7/8in
• H 220mm; 8-11/16in
• D 500mm; 19-11/16in
• 12.0kg; 26.5lbs
• Owner’s Manual,
• AC Power Cord
