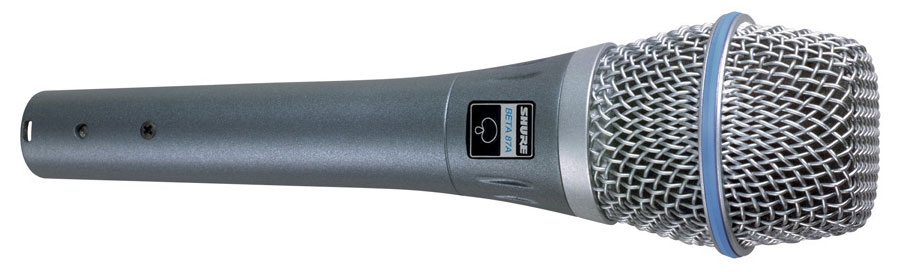

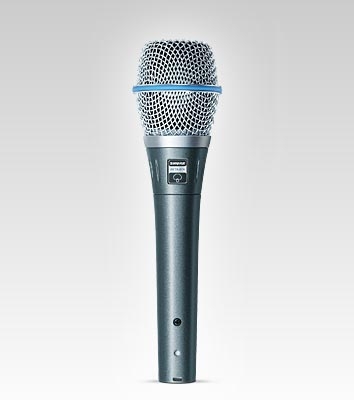

Mikrofon SHURE Beta87A

Mikrofon SHURE Beta87

Cartridge Type

Condenser (electret bias)

Frequency Response

50 to 20,000 Hz

Polar Pattern

Supercardioid

Output Impedance

Rated at 150 ohms (100 ohms actual +/- 20%)

Recommended minimum load impedance: 800 ohms

Sensitivity (at 1,000 Hz)

Open Circuit Voltage -52.5 dBV/Pa (2 mV)

(1 Pa = 94 dB SPL)

Clipping Level (at 1,000 Hz)

1000 ohm Load: -6 dBV (0.5 V)

Maximum SPL (at 1,000 Hz)

140.5 dB (0.25% THD, 1000 ohm load)

Self-Noise

(equivalent sound pressure level; measured with true rms voltmeter)

23.5 dB typical, A-weighted

25.5 dB typical, weighted per DIN 45 405

Dynamic Range

117 dB (maximum SPL to A-weighted noise level)

Signal-to-Noise Ratio

70.5 dB at 94 dB SPL (IEC 651)

(S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.)

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Power

Phantom Supply Requirement: 11 to 52 Vdc, positive at both pins 2 and 3

Current Drain: 1.0 to 1.2 mA

Connector

Three-pin (XLR) professional audio

Case

Aluminum construction with blue metallic finish, and hardened steel grille with nickel satin chrome plating

Dimensions

See User Guide

Net Weight

207 grams (7.6 oz)
