Mikrofon AKG C214

Mikrofoni Žičani

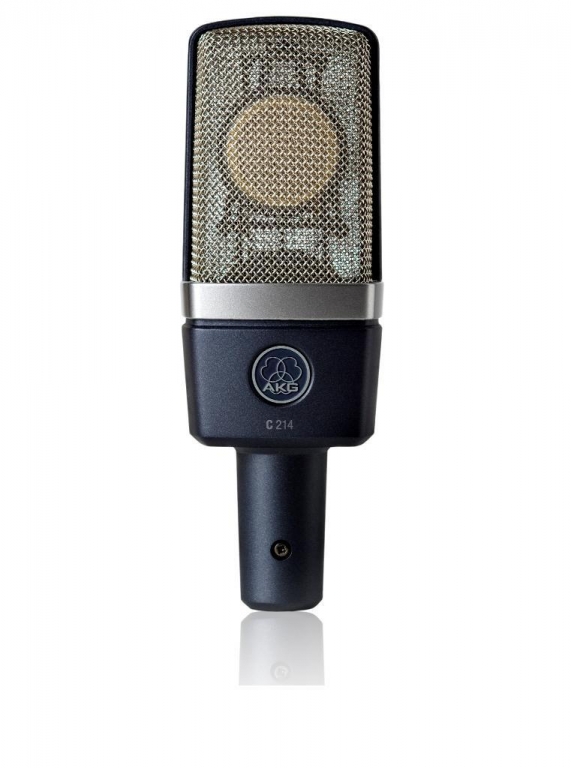

Mikrofon AKG C214

by Akg

Mikrofon AKG C214 tehničke karakteristike :

Polar pattern Cardioid
Frequency range 20 to 20,000 Hz
Sensitivity 20 mV/Pa (-34 dBV)
Max. SPL 136/156 dB SPL (0/-20 dB) (for 0.5% THD)
Equivalent noise level 13 dB-A to IEC 60268-4 (A-weighted)
Signal/noise ratio (A-weighted) 81 dB

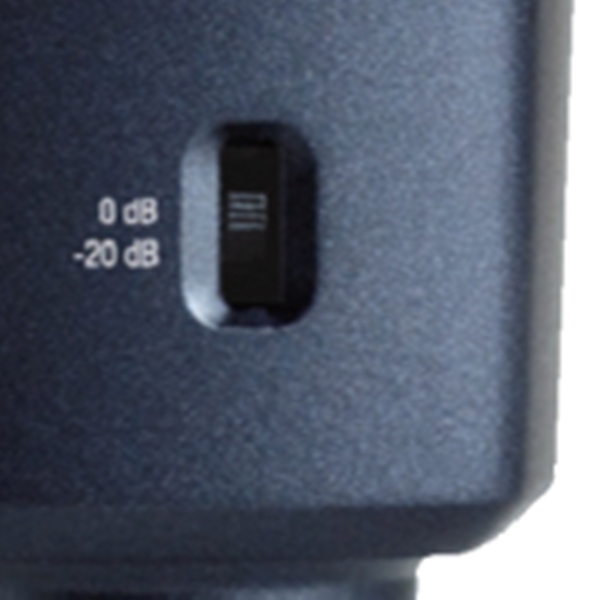

Preattenuation pad 0/-20 dB (switchable)

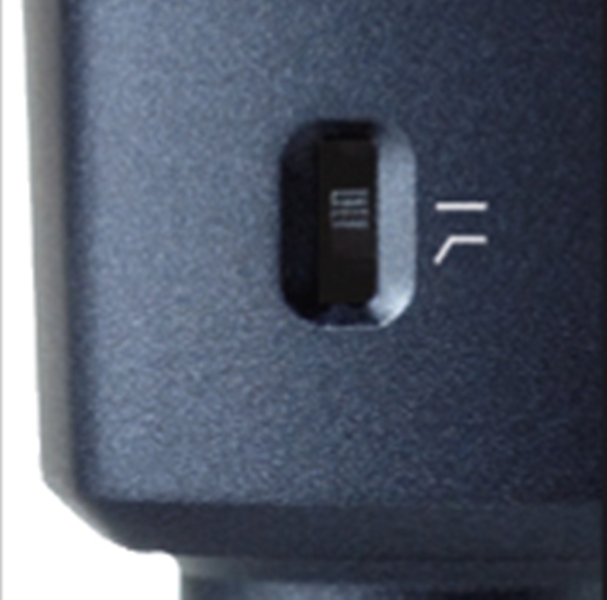

Bass cut filter slope 160 Hz, 6 dB/Octave, switchable
Impedance <=200 ohms
Recommended load impedance >=1000 ohms
Supply voltage 12 to 52 V Phantom power to IEC 61938
Powering < 2 mA
Dynamic range 123/143 dB (0/-20 dB) (A-weighted)
Connector IEC standard 3-pin XLR
Finish matte grayish blue
Dimensions 160 x 55 mm (6.3 x 2.2 in.)
Net weight 280 g (0.62 lbs.)
Shipping weight 1450 g (3.22 lbs.)
Patent(s) Electrostatic transducer (Patent no. AT 395.225, DE 4.103.784, JP 2.815.488)
59.708,00 din.
