Korg PA800 klavijatura

Klavijature

Korg PA800 klavijatura

by Korg

Keyboard:

61 keys with Velocity and Aftertouch

System:
RX (Real eXperience) Technology
OPOS (Objective Portable Operating System) Multitasking (Load while play feature)
Upgradable Operative System
SSD Solid State Disk

Tone Generator:
KORG HI Synthesis (Hyper Integrated)
120 Voices, 120 Oscillators
Filters with Resonance
EQ for each track

Effects:
4 Stereo Digital Multi-Effect systems
124 Effects types plus VOCODER
Voice Processor Technology by TC Helicon: Three-part Harmonizer, Reverb, Delay, Compressor, EQ

Sounds & Drum Kits:
More than 950, including a Stereo Piano and GM Level 2 compatible Sounds
63 Drum Kits - User area: 256 Sounds, 64 Drum Kits
Digital Drawbars: 8 Footages
Realtime control: Assignable Sliders
Full editing of Sounds and Drum Kits
Sampling: Record, Edit, Time Slice, Load/Import of Korg, Wav, Aiff and Akai files
Export of Wav and Aiff files
PCM RAM Memory: 64 MB standard

Styles:
More than 400 preloaded Styles, SSD-resident, freely reconfigurable
Up to 960 available Style locations including the Favorite banks
Eight Style tracks, 4 Single Touch Settings and one Style Performance per Style
Compatible with old "i-Series" and Pa series Style format
Style Record with Step Record, Track and Event Edit functions
Style controls: 4 Variations, 3 Fills, 3 Intros, 3 Endings, Synchro Start/Stop, Tap Tempo/Reset, Fade In/Out, Bass Inversion, Manual Bass, Tempo Lock, Memory, Accompaniment/Real Time Track Balance Volume, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Single Touch

Performance/STS:
320 Realtime Performance locations
STS: Memorize Realtime tracks and Voice Processor settings, up to 4 x 960 Styles, up to 4 x SongBook entries

Realtime Tracks:
Four Keyboard tracks (Upper 1, 2, 3, Lower)
4 Pad tracks

Song Play:
Patented XDS Crossfade Dual Sequencer player
2 Sequencers with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Balance control
Lyrics data can be displayed on-screen, or on an external video monitor (with VIF4 option installed)
Markers
Jukebox function
Compatible with (formats 0 and 1)

Sequencer:
Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer
16 tracks
Up to 200,000 events
SMF native format

SongBook:
Fully programmable music database, based on Styles, SMF, Karaoke with automatic selection of Style Play and Song Play modes User-definable custom lists
Filtering options

Compatibility:
"i-Series" models: Styles
Pa series: Style, Performance, Program/Sound, Song, SongBook

Multi Pad:
4 Assignable Pads + Stop Button.
Pad Record function

Help System:
Hypertextual, Contextual, Multilingual

General Controls:
Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose, Master Transpose, Style Change, Quarter Tone and Arabic Scale memorized inside Performance/STS Realtime controllers: Joystick (pitch + modulation), 2 Assignable Sliders, 2 Assignable Switches, Dial, Up/+, Down/-

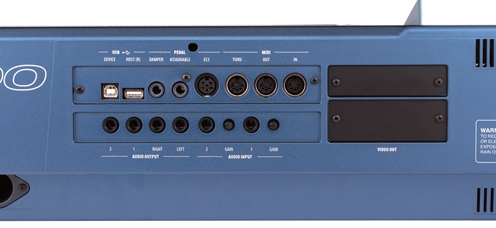

Control Inputs:
Damper Pedal (Support Half-Pedaling), Assignable Pedal/Switch, EC-5 (Programmable Multi-Switches)

Analog Output:
Unbalanced Jack Left/Mono, Right, Out 1, Out 2, Headphones

Analog Input:
2 Unbalanced/Balanced (automatic switch) Jack Line In with separate Gain control

MIDI:
In, Out, Thru standard MIDI connectors
USB MIDI using the USB Device port
Individual track assignment
8 user definable MIDI Setups

USB:
2 Host Front/Rear (2.0 Hi Speed) and 1 Device Rear (1.1 Full Speed) connections

Hard Disk:
Optional 2.5" ATA Hard Disk Drive

CD Player/Writer - Floppy Disk:
Optional standard USB CD-Drives to be connected to USB Host port

Display:

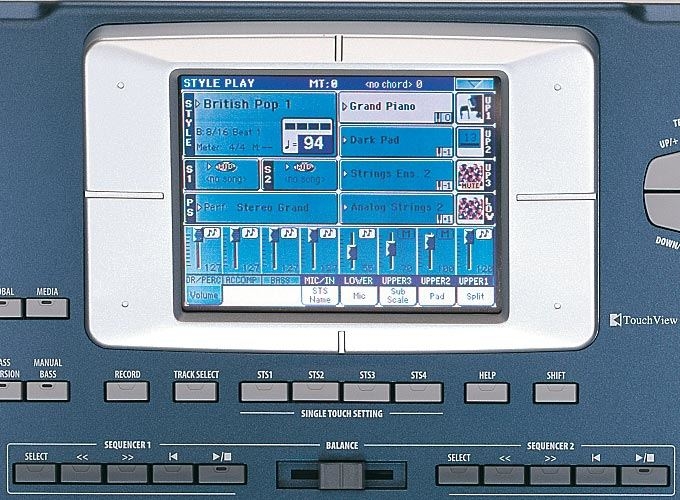

320 x 240 pixels, Color TouchView Graphic Touch Screen

Amplification:
2 x 22 W
Loudness
Fixed EQ

Speakers:

4 Speakers (10 cm Woofers + Tweeters)
2 way in Bass Reflex Box

Consumption:
40 Watt

Dimensions:

43.7" (W) x 15.3" (D) x 7.1" (H) [Not including music stand]

Weight:
29.3 lbs

212.282,00 din.
