Korg PA500 Klavijatura


Korg PA500 Klavijatura

by Korg
  61 keys with Velocity

OPOS (Objective Portable Operating System) and

RX (Real eXperience) Technology – Multitasking, Load while

play feature – Upgradable Operative System -

SSD Solid State Disk

  Tone Generator:

EDS (Extended Definition Synthesis) 80 Voices,

80 Oscillators – Filters with Resonance -

Three band EQ for each track


4 Stereo Digital Multi-Effect systems –

124 Effects types – Final semi-parametric three band EQ

  Sounds-Drum Kits:

880 Sounds, including a Stereo Piano and GM

Level 2 compatible Sounds, 56 Drum Kits -

User area: 128 Sounds, 64 Drum Kits -

Realtime control: Assignable Slider, Switch -

Full editing of Sounds and Drum Kits


More than 320 preloaded Styles, SSD-resident,

freely reconfigurable -

Up to 448 available Style locations-

64 User Styles - Eight Style tracks,

4 Single Touch Settings and one

Style Performance per Style -

Guitar Track, Parallel and Fixed NTT -

Compatible with old "i-Series" and Pa series Style format -

Style Record with Step Record, Track and Event Edit functions -

Style controls: 4 Variations, 3 Fills, 3 Intros, 3 Endings,

Synchro Start/Stop, Tap Tempo/Reset, Fade In/Out,

Bass Inversion, Manual Bass, Tempo Lock, Memory,

Accompaniment/Real Time Track Balance Volume,

Accompaniment Mute, Drum Mapping, Snare & Kick Designation,

Single Touch


256 Realtime Performance locations -

STS: Memorize Realtime tracks settings,

up to 4 x 512 Styles,

up to 4 x SongBook entries – All programmable

  Realtime Tracks:
  Four Keyboard tracks (Upper 1, 2, 3, Lower) - 4 Pad tracks
  Song Play:

Patented XDS Crossfade Dual Sequencer player -

2 Sequencers with separate Select, Start/Stop,

Home, Rewind and Fast Forward controls -

Balance control - Lyrics data can be displayed on-screen -

Markers - Jukebox function -

Compatible with SMF (formats 0 and 1)


Quick Record (Backing Sequence),

Multitrack and Step Record functions -

Full-featured sequencer - 16 tracks -

Up to 110,000 events - SMF native format


Fully programmable music database, based on Styles,

SMF, Karaoke, with automatic

selection of Style Play and Song Play modes -

User-definable custom lists - Filtering options


"i-Series" models: Styles -

Pa series: Style, Performance, Program/Sound,

Song, SongBook, Pad

  Multi Pad:
  4 Assignable Pads + Stop Button. Pad Record function
  Help System:
  Hypertextual, Contextual, Multilingual
  General Controls:

Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble,

Octave Transpose, Master Transpose, Style Change,

Split, Quarter Tone Arabic Scale ,

User Scale memorized inside Performance/STS -

Realtime controllers: Joystick (pitch + modulation),

1 Assignable Slider,

1 Assignable Switch, Dial, Up/+, Down/-

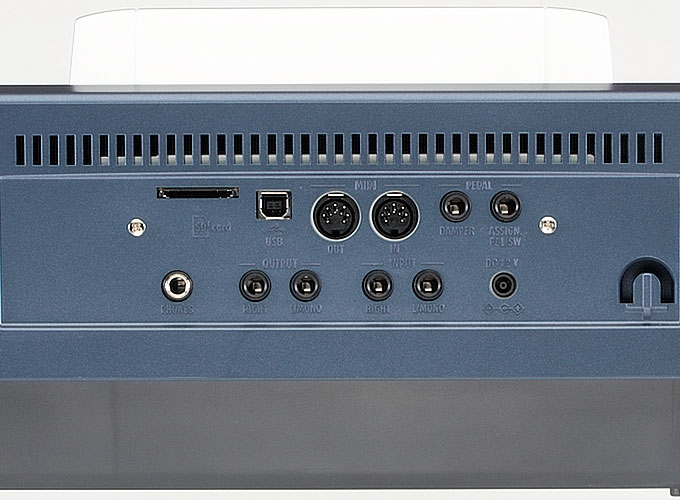

  Control Inputs:
  Damper Pedal, Assignable Pedal/Footswitch
  Analog Output:
  Unbalanced Jack Left/Mono, Right, Headphones
  Analog Input:
  2 Unbalanced Line In Jacks

In, Out standard Midi connectors-

USB to Midi using the USB Device port -

Individual track assignment -

8 user definable MIDI Setups

  1 USB Device connection (1.1 Full Speed)
  Card Slot:

SD (Secure Digital) Card and MultiMedia Card

(MMC) Memory Devices


320 x 240 pixels, Monochrome TouchView

Graphic Touch Screen

  2 x 15 W - Fixed EQ
  2 Dual Cone Speakers in Bass Reflex Box
  Power Supply:
  DC 12V external power supply (supplied)
  15 Watt

(W x D x H) 42.2 x 15.9 x 7.5 Inches

( 1074 x 404 x 183 mm) – without music rest

  21.8 lbs (9,9 kg)
  Manual, AC adapter, Music Stand, CD-ROM
108.442,00 din.
