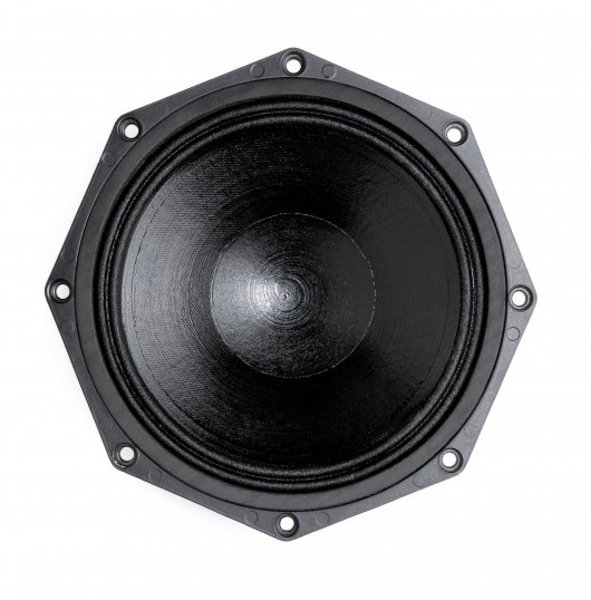

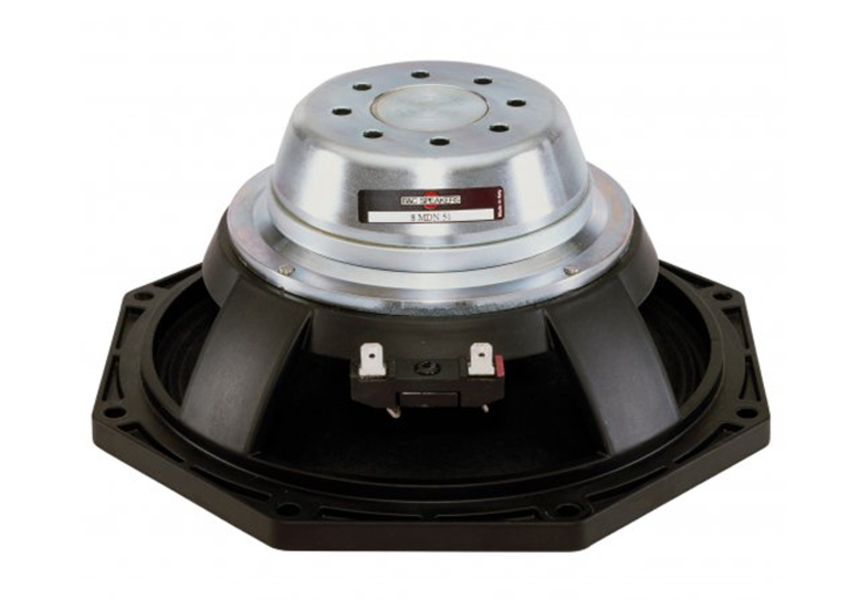

B&C Zvučnik 8MDN51

 B&C Zvučnik 8MDN51 :

Specifications:


• Nominal diameter 200 mm (8.0 in)
• Nominal impedance 8 ohms
• Minimum impedance 7.7 ohms
• Nominal power handling 200 W
• Continuous power handling 400 W
• Sensitivity (1W/1m) 97.0 dB
• Frequency range 70 - 4000 Hz
• Voice coil diameter 51 mm (2.0 in)
• Winding material Aluminium
• Former material Kapton
• Winding depth 16 mm (0.62 in)
• Magnetic gap depth 8 mm (0.31 in)
• Flux density 1.45 T

Design:


• Surround shape Double Roll
• Cone shape Exponential
• Magnet material Neodymium Ring
• Spider Single
• Pole design T-Pole
• Woofer cone treatment WP Waterproof Front Side

Parameters:


• Fs 70 Hz
• Re 5.1 ohms
• Qes 0.21
• Qms 3.7
• Qts 0.2
• Vas 16.0 dm3 (0.6 ft3)
• Sd 220.0 cm2 (34.1 in2)
• Reference efficiency 2.4 %
• Xmax 6.0 mm
• Xvar 6.0 mm
• Mms 23 g
• Bl 15.3 Txm
• Le 0.8 mH
• EBP 333 Hz

Mounting And Shipping Info:


• Overall diameter 225 mm (8.8 in)
• Bolt circle diameter 210 mm (8.3 in)
• Baffle cutout diameter 187.0 mm (7.4 in)
• Depth 95 mm (3.74 in)
• Flange and gasket thickness 11 mm (0.4 in)
• Air volume occupied by driver 1.1 dm3 (0.04 ft3)
• Net weight 2.55 kg (5.6 lb)
• Shipping weight 2.95 kg (6.5 lb)
• Shipping box 300x160x180 mm (11.8x6.3x7.1 in)
• Service Kit RCK008MDN518
•
