LF Zvučnici

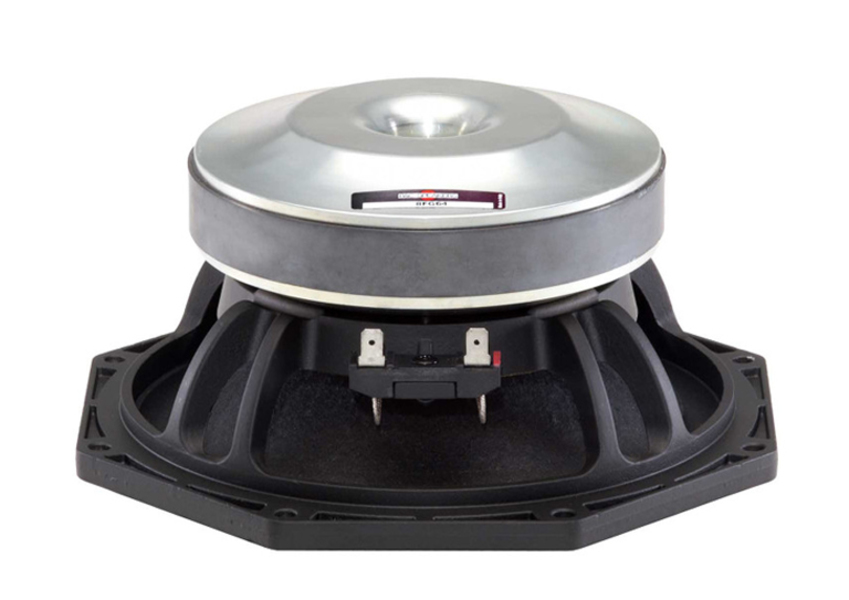

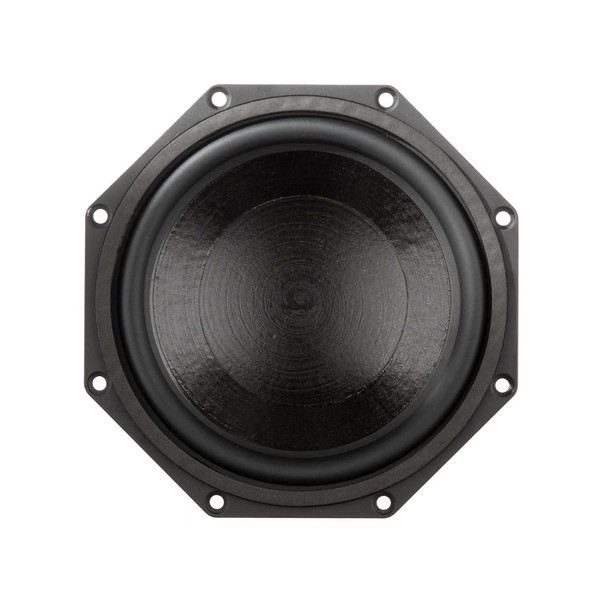

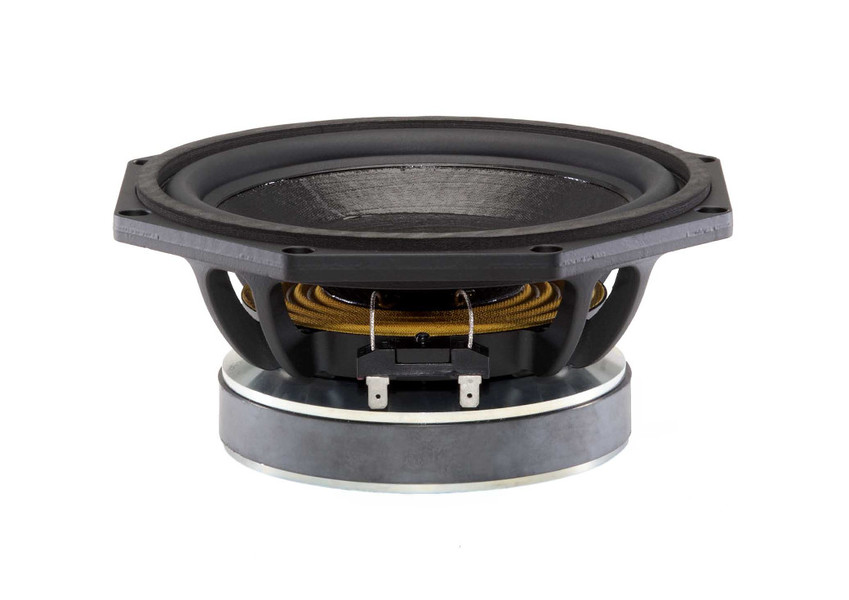

B&C Zvučnik 8FG64
by B&C SpeakersB&C Zvučnik 8FG64 :
B&C 8FG64 8" 8 Ohm Loudspeaker Driver
Specifications:
- Nominal diameter 200 mm (8.0 in)
- Nominal impedance 8 ohms
- Minimum impedance 6.7 ohms
- Nominal power handling 300 W
- Continuous power handling 600 W
- Sensitivity (1W/1m) 92.0 dB
- Frequency range 50 - 3000 Hz
- Voice coil diameter 64 mm (2.52 in)
- Winding material Copper
- Former material Glass Fibre
- Winding depth 19 mm (0.75 in)
- Magnetic gap depth 10 mm (0.39 in)
- Flux density 0.9 T
Design:
- Surround shape Roll
- Cone shape Radial
- Magnet material Ferrite
- Spider Single
- Pole design T-Pole
- Woofer cone treatment WP Waterproof Front Side
- Recommended enclosure 16.0 dm3 (0.57 ft3)
- Recommended tuning 50 Hz
Parameters:
- Fs 51 Hz
- Re 5.8 ohms
- Qes 0.32
- Qms 10.1
- Qts 0.31
- Vas 15.0 dm3 (0.53 ft3) vSd 220.0 cm2 (34.1 in2)
- Reference efficiency 0.7 %
- Xmax 7.0 mm
- Xvar 8.0 mm
- Mms 41 g
- Bl 15.8 Txm
- Le 1.7 mH
- EBP 159 Hz
Mounting And Shipping Info:
- Overall diameter 225 mm (8.86 in)
- Bolt circle diameter 210 mm (8.3 in)
- Baffle cutout diameter 187.0 mm (7.4 in)
- Depth 100 mm (3.94 in)
- Flange and gasket thickness 9 mm (0.37 in)
- Air volume occupied by driver 1.5 dm3 (0.05 ft3)
- Net weight 4.5 kg (9.92 lb)
- Shipping weight 4.9 kg (10.8 lb)
- Shipping box 300x160x180 mm (11.81x6.30x7.09 in)
- Service Kit RCK008FG648
