LF Zvučnici

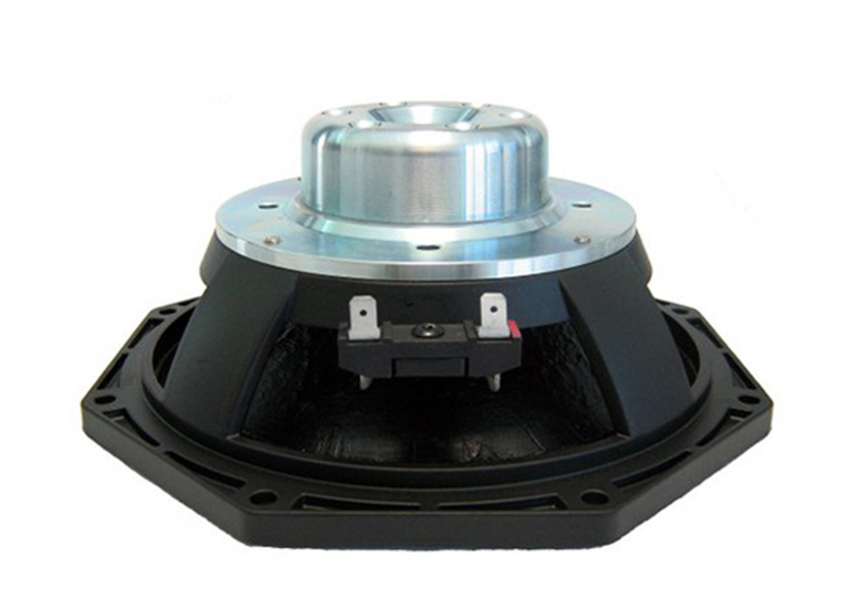

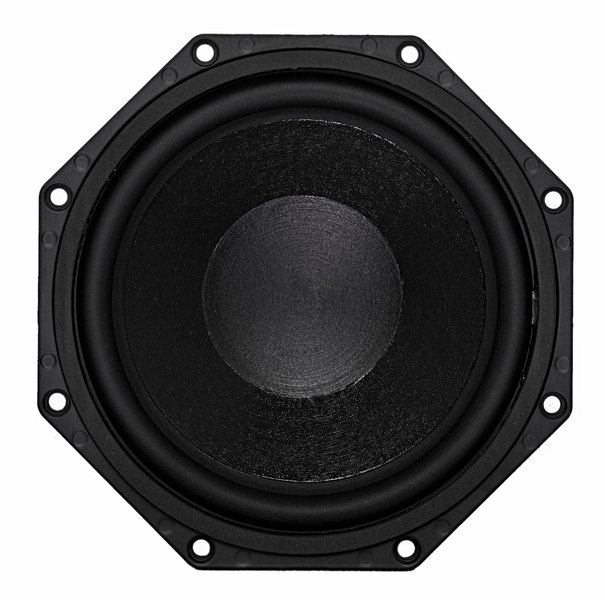

B&C Zvučnik 8BG51
by B&C SpeakersB&C Zvučnik 8BG51 :
B&C 8BG51 8" 250W 8 Ohm Neodymium Loudspeaker driver
Features:
- 500W continuous program power capacity
- 51 mm (2 in) copper voice coil
- 50 - 4000 Hz response
- 92 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Shorting copper cap for extended HF response
- Ventilated voice coil gap for reduced power compression
Specifications:
- Nominal Diameter: 8.0", 203mm
- Nominal Impedance: 8 ohms
- Nominal Power: 250 W rms, 6500 W program
- Freq. Response: 50 Hz-4.0 kHz
- Sensitivity: 92 db 1w/1m
- Voice Coil Diameter: 2.0", 51mm
T/S Parameters:
- Fs: 52.0 Hz
- Re: 5.1 ohms
- Le: 0.5mH
- Qms: 12.3
- Qes: 0.42
- Qts: 0.40
- Vas: 17.8 L, 0.63 cuft
- Xmax: 6mm
- Mms: 35g
- Bl: 11.8 Txm
- Le: 0.5 mH
- EBP: 123 Hz
Mounting Information:
- Overall Diameter: 8.8", 224mm
- Number of Mounting Holes: 8
- Mounting Hole Dia: 7.4", 187mm
- Mounting BCD: 9.0", 230mm
- Depth: 3.7", 94mm
