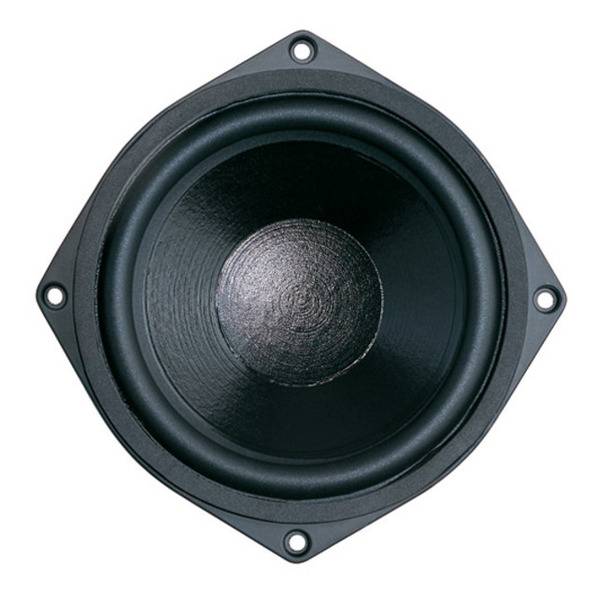

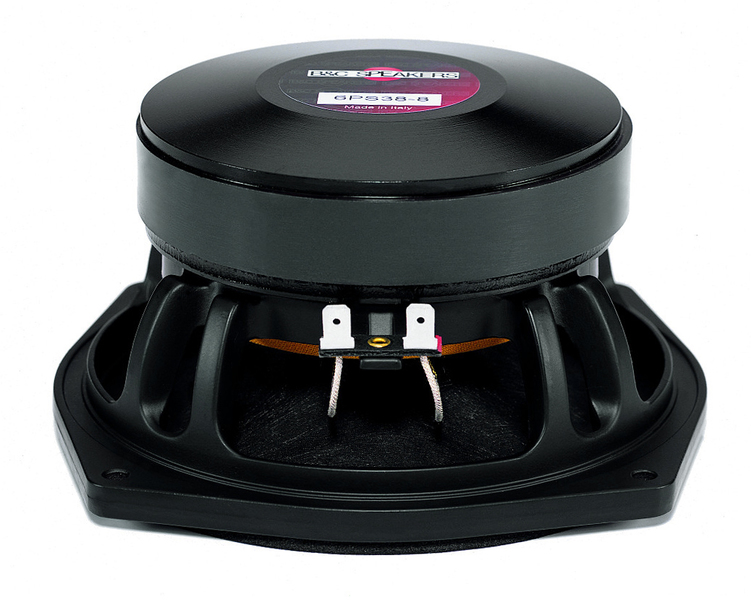

B&C Zvučnik 6PS38

B&C Zvučnik 6PS38 :

Specifications:


• Nominal diameter 170 mm (6.69 in)
• Nominal impedance 8 ohms
• Minimum impedance 6.6 ohms
• Nominal power handling 150 W
• Continuous power handling 300 W
• Sensitivity (1W/1m) 94.0 dB
• Frequency range 70 - 5000 Hz
• Voice coil diameter 38 mm (1.5 in)
• Winding material Aluminium
• Former material Glass Fibre
• Winding depth 12 mm (0.49 in)
• Magnetic gap depth 6 mm (0.24 in)
• Flux density 1.4 T

Design:


• Surround shape Roll
• Cone shape Radial
• Magnet material Ferrite Ring
• Spider Single
• Pole design Straight Pole
• Woofer cone treatment WP Waterproof Front Side

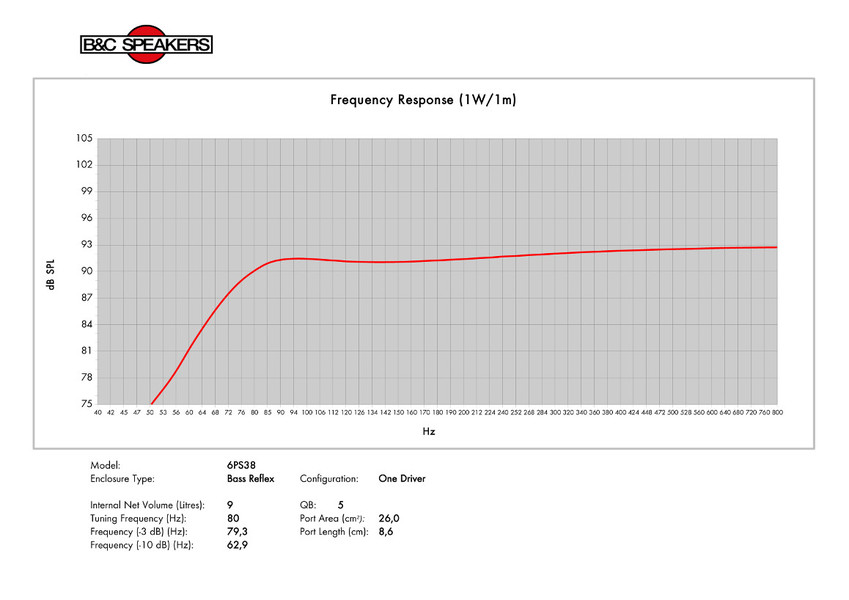

• Recommended enclosure 9.0 dm3
• Recommended tuning 80 Hz

Parameters:


• Fs 75 Hz
• Re 5.4 ohms
• Qes 0.31
• Qms 11.7
• Qts 0.3
• Vas 8.0 dm3
• Sd 132.0 cm2
• Reference efficiency 1.0 %
• Xmax 6.0 mm
• Xvar 7.5 mm
• Mms 14 g
• Bl 10.8 Txm
• Le 0.6 mH
• EBP 241 Hz

Mounting And Shipping Info:


• Overall diameter 187 mm
• Bolt circle diameter 172 mm
• Baffle cutout diameter 145.0 mm
• Depth 82 mm (3.23 in)
• Flange and gasket thickness 9 mm (0.35 in)
• Air volume occupied by driver 0.8 dm3
• Net weight 2.2 kg
• Shipping weight 10.1 kg (22.27 lb)
• Shipping box 405x225x210 mm
• Recone Kit RCK06PS388
