LF Zvučnici

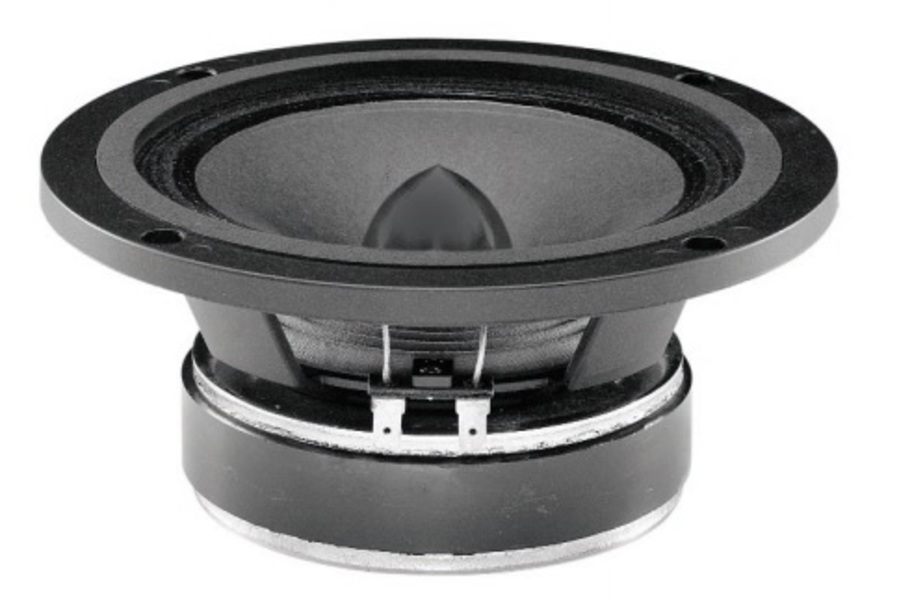

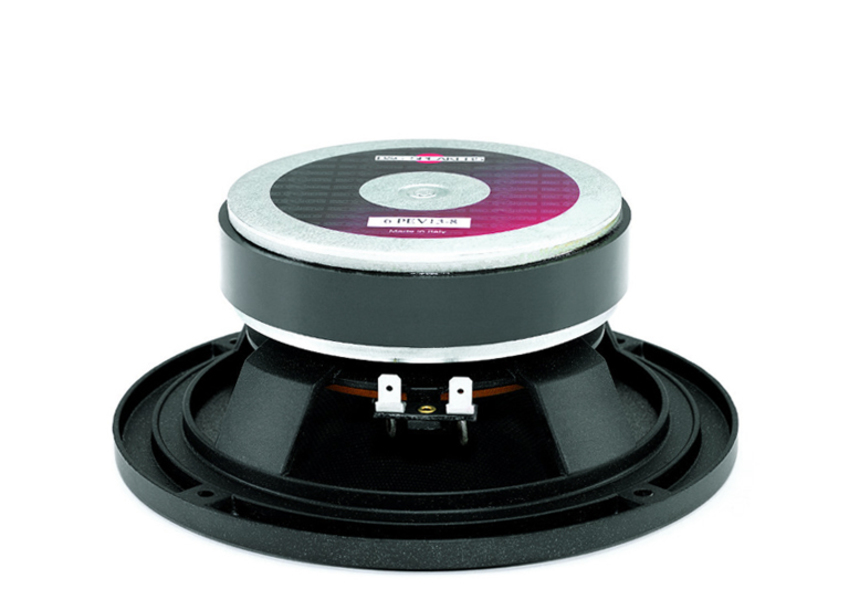

B&C Zvučnik 6PEV13
by B&C SpeakersB&C Zvučnik 6PEV13 :
B&C 6PEV13 6" 120W 8 Ohm Loudspeaker Driver
Specifications:
Design:
Parameters:
Mounting And Shipping Info:
- Nominal diameter 170 mm (6.5 in)
- Nominal impedance 8 ohms
- Minimum impedance 6.0 ohms
- Nominal power handling 120 W
- Continuous power handling 240 W
- Sensitivity (1W/1m) 99.0 dB
- Frequency range 150 - 8000 Hz
- Voice coil diameter 38 mm (1.5 in)
- Winding material Aluminium
- Former material Glass Fibre
- Winding depth 7 mm
- Magnetic gap depth 6 mm
- Flux density 1.4 T
Design:
- Surround shape Flat
- Cone shape Exponential
- Magnet material Ferrite
- Spider Single
- Pole design Straight Pole
- Woofer cone treatment None
Parameters:
- Fs 126 Hz
- Re 5.2 ohms
- Qes 0.39
- Qms 4.6
- Qts 0.36
- Vas 6.0 dm3
- Sd 132.0 cm2
- Reference efficiency 3.0 %
- Xmax 2.5 mm
- Xvar 1.5 mm
- Mms 6 g
- Bl 8.2 Txm
- Le 0.6 mH
- EBP 323 Hz
Mounting And Shipping Info:
- Overall diameter 187 mm
- Bolt circle diameter 172 mm
- Baffle cutout diameter 145.0 mm
- Depth 78 mm
- Flange and gasket thickness 11 mm
- Air volume occupied by driver 0.8 dm3
- Net weight 2.4 kg
- Shipping weight 10.9 kg
- Shipping box 215x215x135 mm
- Recone Kit RCK06PEV138
