B&C Zvučnik 6MDN44

LF Zvučnici

B&C Zvučnik 6MDN44

by B&C Speakers

B&C Zvučnik 6MDN44 :

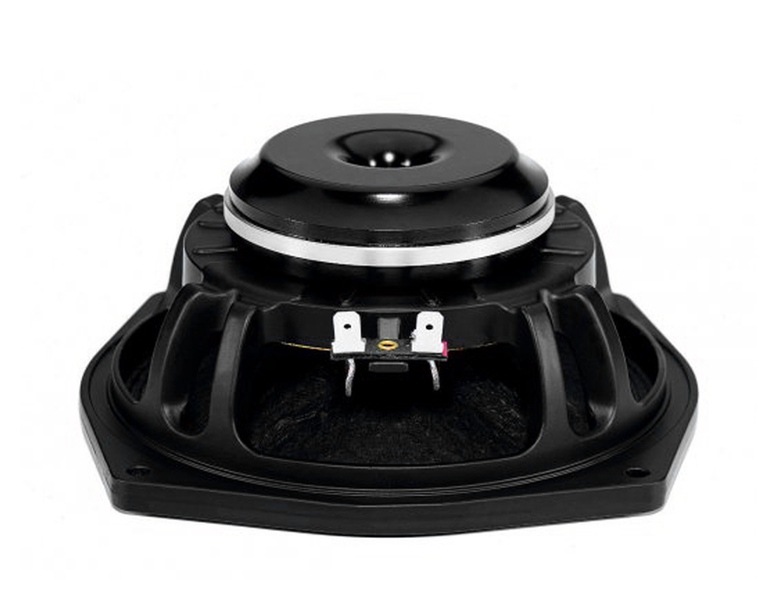

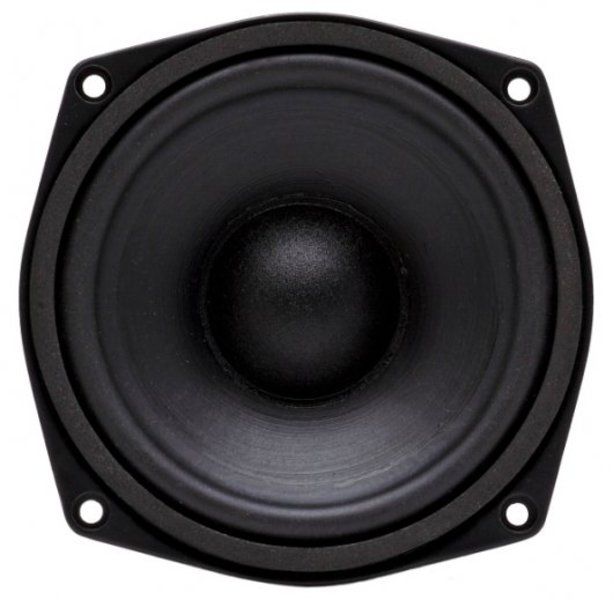

B&C 6MDN44 6" 150W 8 Ohm Loudspeaker Driver



Specifications:

  • Nominal diameter 170 mm (6.5 in)
  • Nominal impedance 8 ohms
  • Minimum impedance 6.5 ohms
  • Nominal power handling 150 W
  • Continuous power handling 300 W
  • Sensitivity (1W/1m) 96.5 dB
  • Frequency range 150 - 6000 Hz
  • Voice coil diameter 44 mm (1.7 in)
  • Winding material Aluminium
  • Former material Glass Fibre
  • Winding depth 10 mm
  • Magnetic gap depth 6 mm
  • Flux density 1.45 T


Design:

  • Surround shape Triple Roll
  • Cone shape Exponential
  • Magnet material Neodymium Ring
  • Spider Single
  • Pole design T-Pole
  • Woofer cone treatment WP Waterproof Front Side


Parameters:

  • Fs 140 Hz
  • Re 5.4 ohms
  • Qes 0.46
  • Qms 2.8
  • Qts 0.4
  • Vas 2.7 dm3
  • Sd 132.0 cm2
  • Reference efficiency 1.6 %
  • Xmax 2.5 mm
  • Xvar 3.0 mm
  • Mms 11 g
  • Bl 11.0 Txm
  • Le 0.47 mH
  • EBP 304 Hz


Mounting And Shipping Info:

  • Overall diameter 187 mm
  • Bolt circle diameter 172 mm
  • Baffle cutout diameter 145.0 mm
  • Depth 73 mm
  • Flange and gasket thickness 11 mm
  • Air volume occupied by driver 0.6 dm3
  • Net weight 1.0 kg
  • Shipping weight 1.25 kg
  • Shipping box 221x214x130 mm
  • Recone Kit RCK06MDN448
Proizvod možete kupiti i u našoj radnji.
Pozvati za cenu
