B&C Zvučnik 5NDL38

by B&C Speakers

B&C Zvučnik 5NDL38 :

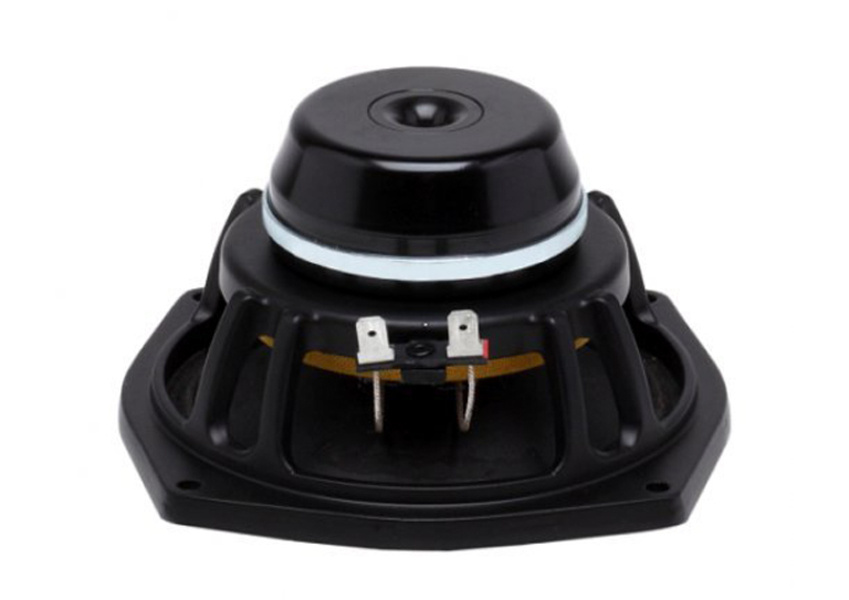

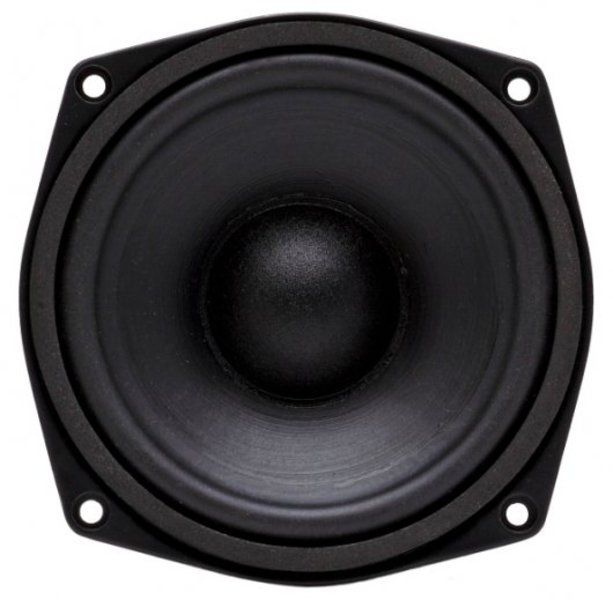

B&C 5NDL38 5" 90W 8 Ohm Loudspeaker Driver



With over 60 years of industry experience, B&C Speakers has designed and built thousands of unique transducers. Each year, our sales and engineering departments work together to develop a comprehensive catalogue. While this catalogue reflects the large majority of our technologies, it is primarily designed to feature some of our more recent additions to the product range.


Specifications:


  • Nominal diameter 5.0"
  • Nominal impedance 8 ohms
  • Minimum impedance 6.3 ohms
  • Nominal power handling: 90W
  • Continuous power handling: 180W
  • Sensitivity (1W/1m) 91.0 dB
  • Frequency range 80 - 7000Hz
  • Voice coil diameter 38 mm (1.5 in)
  • Winding material Aluminium
  • Former material Glass Fibre
  • Winding depth 10 mm (0.37 in)
  • Magnetic gap depth 6 mm (0.24 in)
  • Flux density 1.25 T



Design:


  • Surround shape Roll
  • Cone shape Exponential
  • Magnet material Neodymium Ring
  • Spider Single
  • Pole design Straight Pole
  • Woofer cone treatment WP Waterproof Front Side
  • Recommended enclosure 5.0 litres
  • Recommended tuning 80 Hz



Parameters:


  • Fs 80 Hz
  • Re 5.5 ohms
  • Qes 0.37
  • Qms 9.2
  • Qts 0.36
  • Vas 4.3 litres
  • Sd 95.0 cm sq
  • η₀ 0.55 %
  • Xmax 3.5 mm
  • Xvar 4.0 mm
  • Mms 11 g
  • Bl 9.2 Txm
  • Le 0.64 mH
  • EBP 216 Hz



Mounting And Shipping Info:


  • Overall diameter 150 mm
  • Bolt circle diameter 142 mm
  • Baffle cutout diameter 122.0 mm
  • Depth 75 mm
  • Flange and gasket thickness 9 mm
  • Air volume occupied by driver 0.35 litres
  • Net weight 0.85kg
  • Shipping weight 1.1 kg
  • Shipping box 221x214x130mm
Proizvod možete kupiti i u našoj radnji.

Još malo fotografija...

  • screenshot
  • screenshot
