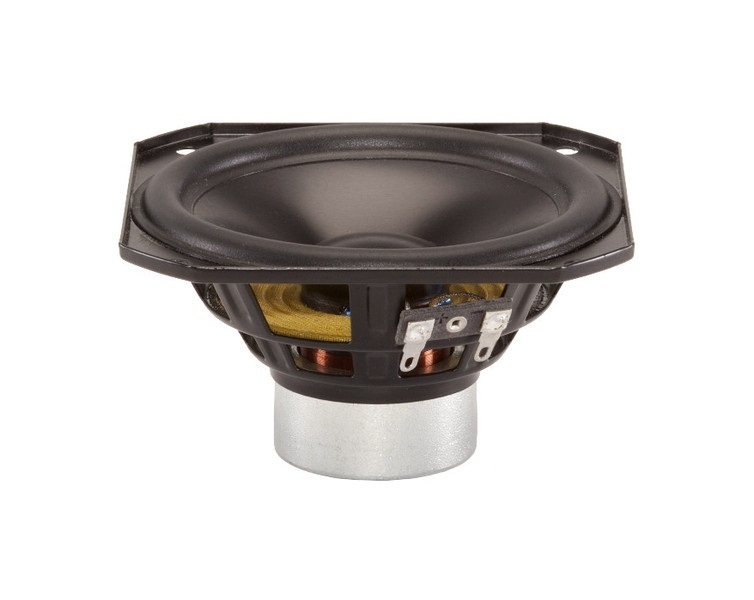

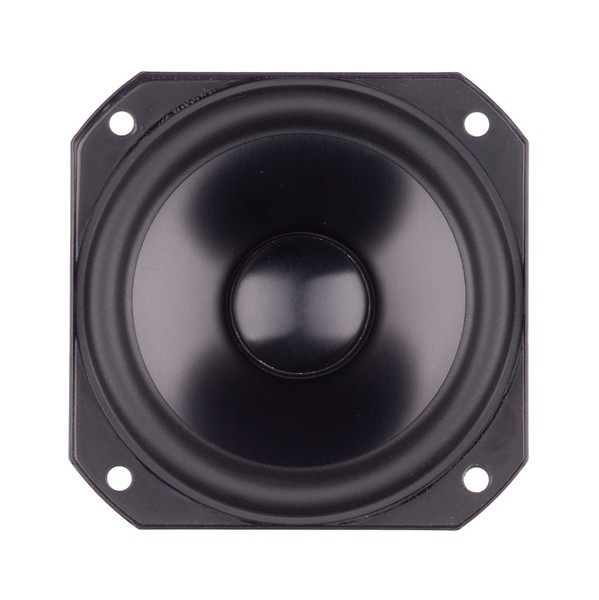

B&C Zvučnik 35NDF26

 B&C Zvučnik 35NDF26 :

Specifications:

• Nominal diameter 90 mm (3.5 in)
• Nominal impedance 8 ohms
• Minimum impedance 6.4 ohms
• Nominal power handling 30 W
• Continuous power handling 60 W
• Sensitivity (1W/1m) 88.0 dB
• Frequency range 100 - 20000 Hz
• Voice coil diameter 26 mm (1.02 in)
• Winding material Aluminium
• Former material Kapton
• Winding depth 8 mm (0.31 in)
• Magnetic gap depth 3 mm (0.13 in)
• Flux density 1.3 T

Design:

• Surround shape Roll
• Cone shape Exponential
• Magnet material Neodymium Inside Slug
• Spider Single
• Pole design Straight Pole
• Woofer cone treatment None
• Recommended enclosure 5.0 dm3 (0.18 ft3)
• Recommended tuning 75 Hz

Parameters:

• Fs 98 Hz
• Re 6.0 ohms
• Qes 0.58
• Qms 8.8
• Qts 0.55
• Vas 1.9 dm3 (0.07 ft3)
• Sd 46.0 cm2 (7.13 in2)
• Reference efficiency 0.3 %
• Xmax 3.2 mm
• Xvar 2.9 mm
• Mms 4 g
• Bl 5.1 Txm
• Le 0.26 mH
• EBP 168 Hz

Mounting And Shipping Info:

• Overall diameter 107 mm (4.21 in)
• Bolt circle diameter 96 mm (3.78 in)
• Baffle cutout diameter 81.5 mm (3.21 in)
• Depth 50 mm (1.97 in)
• Flange and gasket thickness 3 mm (0.13 in)
• Air volume occupied by driver 0.15 dm3 (0.01 ft3)
• Net weight
• 0.18 kg (0.4 lb)
•
