B&C Zvučnik 10NW64

by B&C Speakers

B&C Zvučnik 10NW64 :

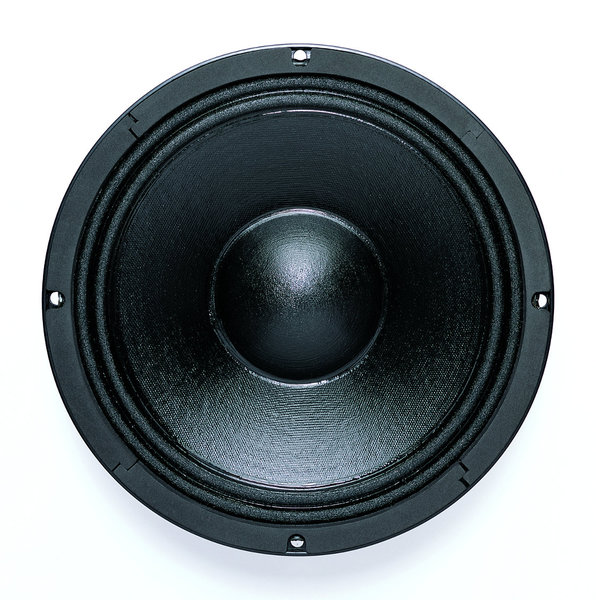

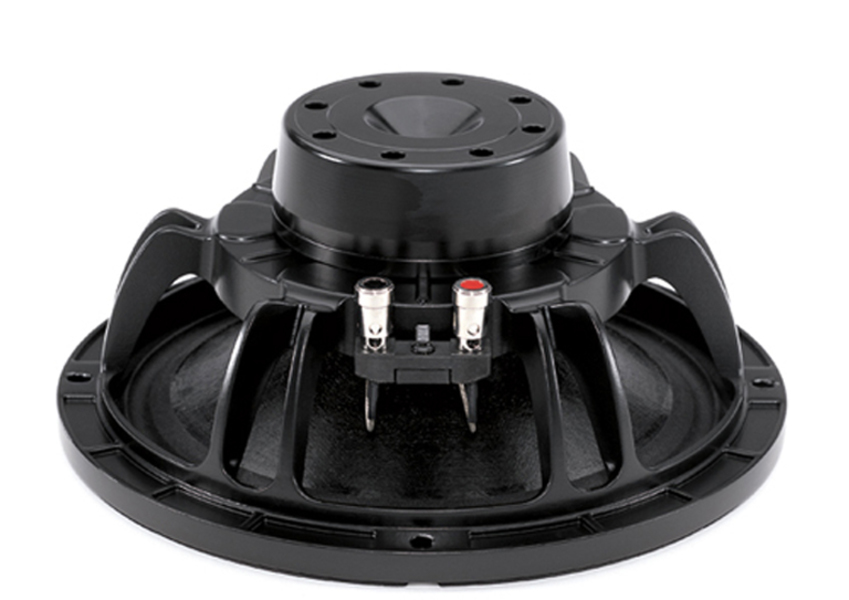

B&C 10NW64 10" 300W 8 Ohm Neodymium Loudspeaker Driver



Specifications


  • Nominal diameter 250 mm (10.0 in)
  • Nominal impedance 8 ohms
  • Minimum impedance 6.5 ohms
  • Nominal power handling 300 W
  • Continuous power handling 600 W
  • Sensitivity (1W/1m) 96.0 dB
  • Frequency range 50 - 2500 Hz
  • Voice coil diameter 64 mm
  • Winding material Copper
  • Former material Glass Fibre
  • Winding depth 16 mm
  • Magnetic gap depth 8 mm
  • Flux density 1.25 T

Design



  • Surround shape Double Roll
  • Cone shape Exponential
  • Magnet material Neodymium Inside Slug
  • Spider Single
  • Pole design Straight Pole
  • Woofer cone treatment TWP Waterproof Both Sides
  • Recommended enclosure 26.0 dm3
  • Recommended tuning 53 Hz



Parameters



  • Fs 50 Hz
  • Re 5.2 ohms
  • Qes 0.27
  • Qms 4.5
  • Qts 0.26
  • Vas 27.5 dm3
  • Sd 320.0 cm2
  • Reference efficiency 1.3 %
  • Xmax 8.0 mm
  • Xvar 10.0 mm
  • Mms 47 g
  • Bl 17.5 Txm
  • Le 0.47 mH
  • EBP 185 Hz



Mounting and Shipping Info



  • Overall diameter 261 mm
  • Bolt circle diameter 245 mm
  • Baffle cutout diameter 230.0 mm
  • Depth 113 mm
  • Flange and gasket thickness 13 mm
  • Air volume occupied by driver 1.5 dm3
  • Net weight 2.9 kg
  • Shipping weight 3.5 kg
  • Shipping box 330x330x160 mm
