B&C Zvučnik 10MD26 :

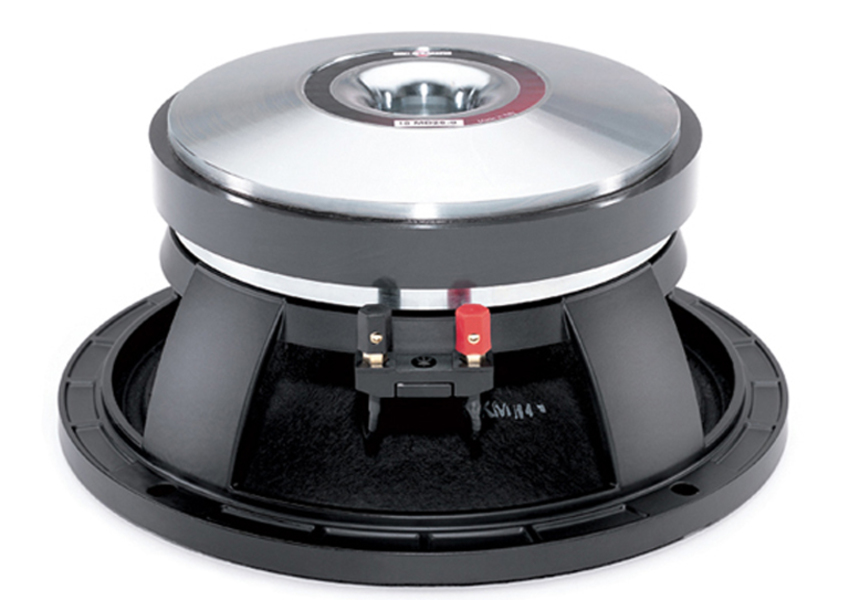

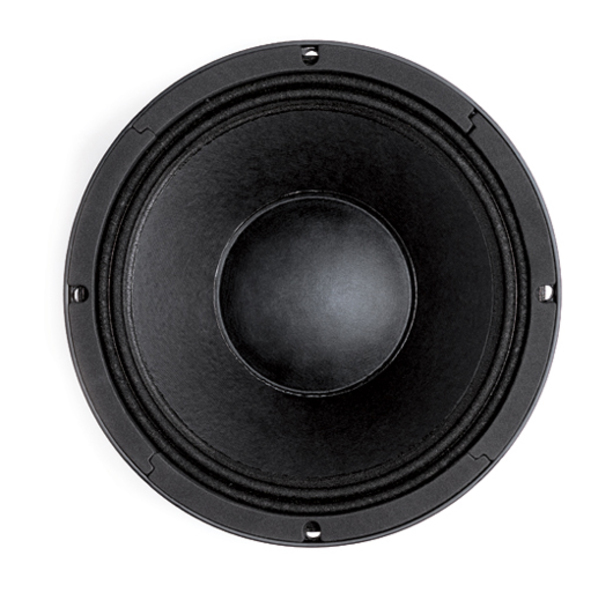

B&C 10MD26 10" 350W 8 Ohm Loudspeaker Driver





Specifications



  • Nominal Diameter 250 mm (10 in)
  • Nominal Impedance 8 ohm
  • Minimum Impedance 7.2 ohm
  • Continuous Power Handling 700 W
  • Nominal Power Handling (AES) 350 W
  • Sensitivity (1W/1m) 100 dB
  • Frequency Range 80 - 4000 Hz
  • Voice Coil Diameter 76 mm
  • Winding Material Aluminium
  • Former Material Glass Fibre
  • Magnet Material Ceramic Ring
  • Winding Depth 11 mm
  • Magnetic Gap Depth 8 mm
  • Flux Density 1.45 T



Design:



  • Surround Shape Double Roll
  • Cone Shape Exponential
  • Magnet Type Ceramic Ring
  • Spider Single
  • Pole Design T-Pole



Parameters



  • Fs 76 Hz
  • Re 5.8 ohm
  • Qes 0.22
  • Qms 4.8
  • Qts 0.21
  • Vas 20 dm3
  • Sd 320 cm2
  • Reference efficiency 3.9 %
  • Xmax 1.5 mm
  • Xvar 4.5 mm
  • Mms 31 g
  • Bl 19.6 Txm
  • Le 1.2 mH
  • EBP 345 Hz



Mounting and Shipping info



  • Overall Diameter 262 mm
  • Bolt Circle Diameter 245 mm
  • Baffle Cutout Diameter 230 mm
  • Depth 124 mm
  • Flange and Gasket Thickness 14 mm
  • Air volume occupied by driver 2.6 dm3
  • Net Weight 7.3 kg
  • Shipping Weight 7.9 kg
  • Shipping Box 320x320x160 mm
