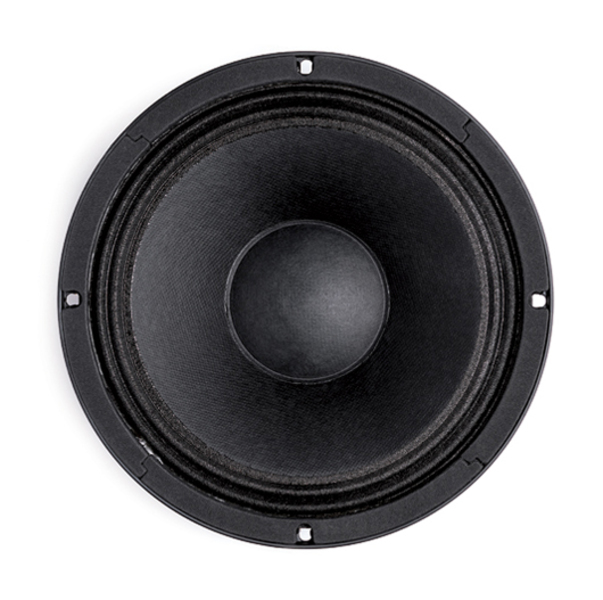

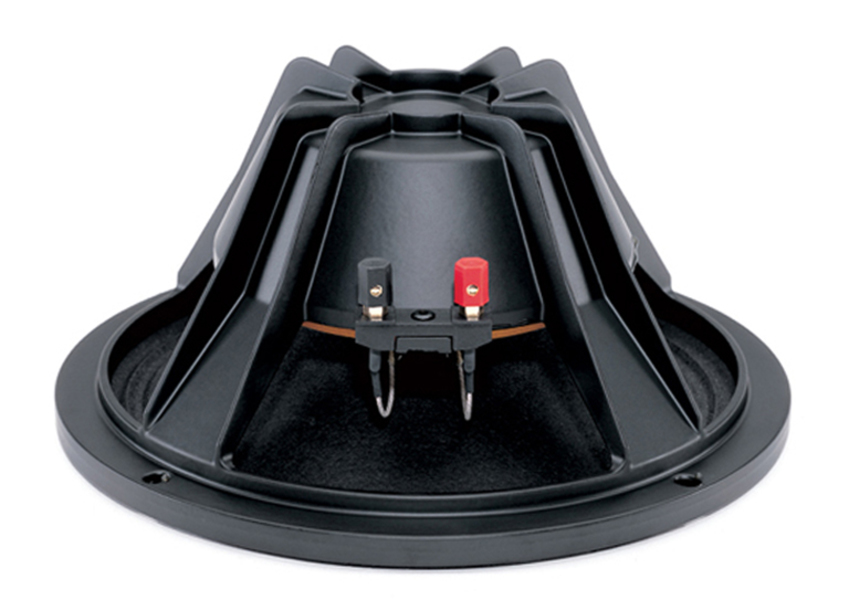

B&C 10HPL64 10" 200W 8 Ohms Neodymium Loudspeaker Driver (Faston)
Specifications
- Nominal diameter 250 mm (10.0 in)
- Nominal impedance 8 ohms
- Minimum impedance 6.2 ohms
- Nominal power handling 200 W
- Continuous power handling 400 W
- Sensitivity (1W/1m) 99.0 dB
- Frequency range 60 - 4000 Hz
- Voice coil diameter 64 mm
- Winding material Aluminium
- Former material Glass Fibre
- Winding depth 12 mm
- Magnetic gap depth 8 mm
- Flux density 1.25 T
Design
- Surround shape Double Roll
- Cone shape Exponential
- Magnet material Neodymium Inside Slug
- Spider Single
- Pole design Straight Pole
- Woofer cone treatment None
- Recommended enclosure 26.0 dm3
- Recommended tuning 67 Hz
Parameters
- Fs 61 Hz
- Re 5.4 ohms
- Qes 0.33
- Qms 4.5
- Qts 0.31
- Vas 32.0 dm3
- Sd 320.0 cm2
- Reference efficiency 2.5 %
- Xmax 4.0 mm
- Xvar 5.5 mm
- Mms 29 g
- Bl 15.0 Txm
- Le 0.5 mH
- EBP 184 Hz
Mounting and Shipping Info
- Overall diameter 261 mm
- Bolt circle diameter 245 mm
- Baffle cutout diameter 230.0 mm
- Depth 122 mm
- Flange and gasket thickness 13 mm
- Air volume occupied by driver 1.5 dm3
- Net weight 2.0 kg
- Shipping weight 2.6 kg
- Shipping box 270x270x150 mm
|
