B&C Zvučnik 10FW64

LF Zvučnici

B&C Zvučnik 10FW64

by B&C Speakers

B&C Zvučnik 10FW64 :

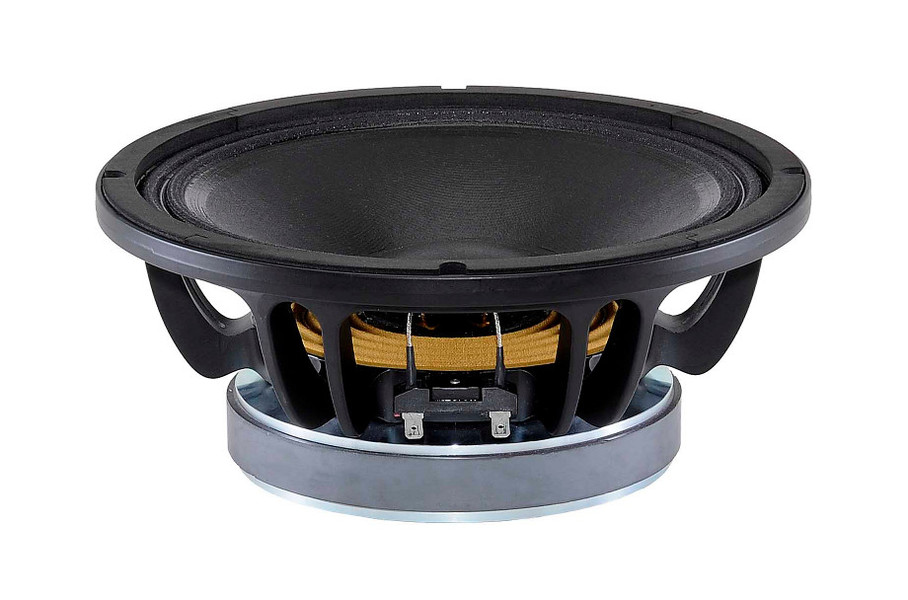

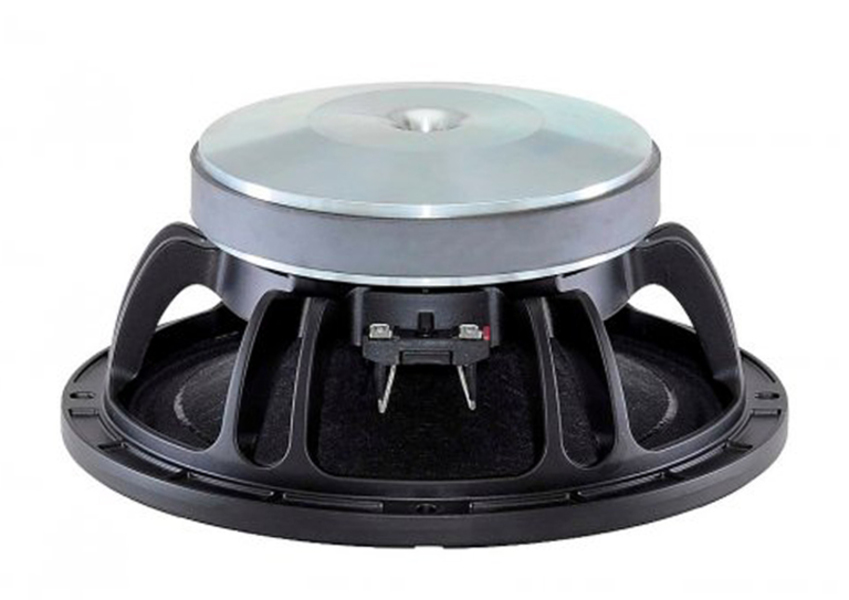

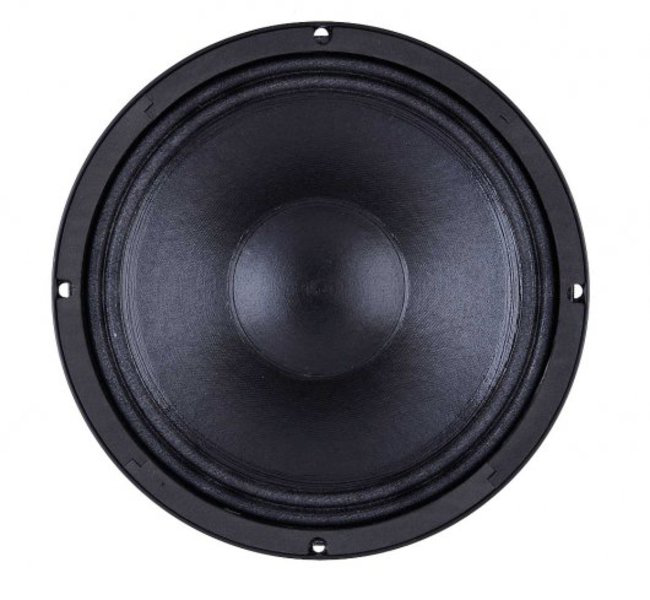

B&C 10FW64 10" 250W 8 Ohm Loudspeaker Driver





Specifications:


  • Nominal diameter 250 mm (10.0 in)
  • Nominal impedance 8 ohms
  • Minimum impedance 6.4 ohms
  • Nominal power handling 250 W
  • Continuous power handling 500 W
  • Sensitivity (1W/1m) 98.0 dB
  • Frequency range 65 - 3000 Hz
  • Voice coil diameter 64 mm
  • Winding material Aluminium
  • Former material Glass Fibre
  • Winding depth 14 mm
  • Magnetic gap depth 8 mm
  • Flux density 1.25 T



Design:


  • Surround shape Double Roll
  • Cone shape Exponential
  • Magnet material Ferrite
  • Spider Single
  • Pole design T-Pole
  • Woofer cone treatment WP Waterproof Front Side
  • Recommended enclosure 26.0 dm3
  • Recommended tuning 62 Hz



Parameters:


  • Fs 63 Hz
  • Re 5.0 ohms
  • Qes 0.25
  • Qms 3.4
  • Qts 0.23
  • Vas 27.0 dm3
  • Sd 320.0 cm2
  • Reference efficiency 2.6 %
  • Xmax 5.0 mm
  • Xvar 5.5 mm
  • Mms 34 g
  • Bl 16.4 Txm
  • Le 0.9 mH
  • EBP 252 Hz



Mounting And Shipping Info:


  • Overall diameter 261 mm
  • Bolt circle diameter 245 mm
  • Baffle cutout diameter 230.0 mm
  • Depth 116 mm
  • Flange and gasket thickness 13 mm Air volume occupied by driver
  • 2.5 dm3
  • Net weight 5.9 kg
  • Shipping weight 6.5 kg
  • Shipping box 330x330x160 mm
  • Recone Kit RCK10FW648
  •

Još malo fotografija...

  • screenshot
  • screenshot
  • screenshot
