B&C Zvučnik 10CL51

LF Zvučnici

B&C Zvučnik 10CL51

by B&C Speakers

 B&C Zvučnik 10CL51 :

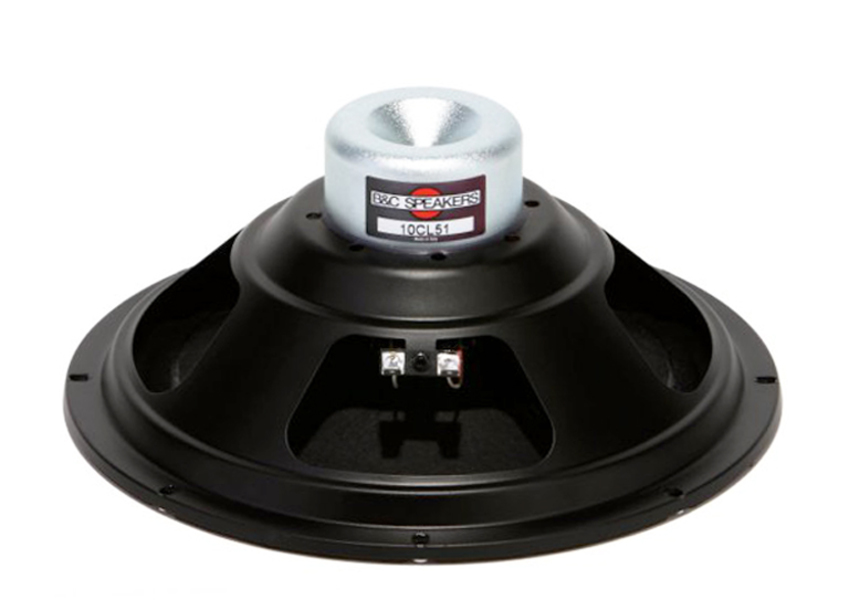

B&C 10CL51 10" 150W 8 Ohm Neodymium Loudspeaker Driver





Specifications



  • Nominal diameter 250 mm (10.0 in)
  • Nominal impedance 8 ohms
  • Minimum impedance 6.0 ohms
  • Nominal power handling 150 W
  • Continuous power handling 300 W
  • Sensitivity (1W/1m) 96.0 dB
  • Frequency range 60 - 4000 Hz
  • Voice coil diameter 51 mm
  • Winding material Aluminium
  • Former material Glass Fibre
  • Winding depth 17 mm
  • Magnetic gap depth 8 mm
  • Flux density 1.05 T



Design



  • Surround shape Double Roll
  • Cone shape Exponential
  • Magnet material Neodymium Inside Slug
  • Spider Single
  • Pole design Straight Pole
  • Woofer cone treatment None
  • Recommended enclosure 32.0 dm3
  • Recommended tuning 56 Hz



Parameters



  • Fs 60 Hz
  • Re 5.2 ohms
  • Qes 0.44
  • Qms 3.8
  • Qts 0.39
  • Vas 31.0 dm3
  • Sd 320.0 cm2
  • Reference efficiency 1.55 %
  • Xmax 6.0 mm
  • Xvar 6.0 mm
  • Mms 32 g
  • Bl 12.0 Txm
  • Le 0.8 mH
  • EBP 136 Hz



Mounting and Shipping Info



  • Overall diameter 257 mm (10.1 in)
  • Bolt circle diameter 246 mm (9.7 in)
  • Baffle cutout diameter 232.0 mm (9.1 in)
  • Depth 108 mm (4.25 in)
  • Flange and gasket thickness 7 mm (0.28 in)
  • Air volume occupied by driver 1.0 dm3 (0.03 ft3)
  • Net weight 1.2 kg (2.6 lb)
  • Shipping weight 2 kg
  • Shipping box 320x320x160 mm (12x12x6.3 in)
